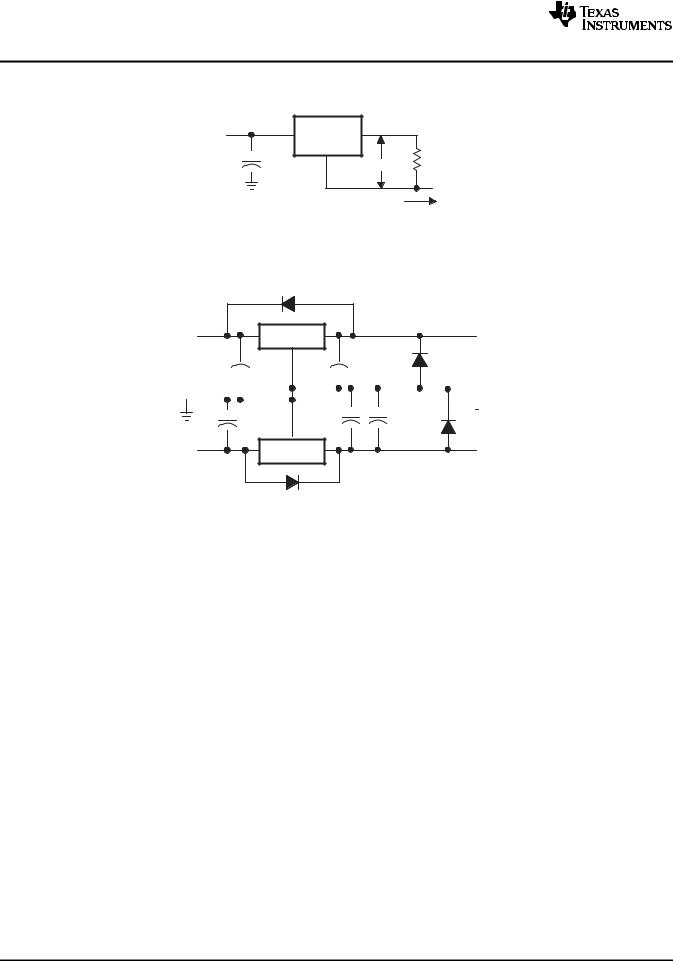

Typical Application (continued) |
|
Input |
µA78xx |
|
R1 |
0.33 µF |
VO(Reg) |
|
Output |
|
IO |
|
|
IO = (VO/R1) + IO Bias Current |
|
|
Figure 8. Current Regulator |
|
|
1N4001 |
|
20-V Input |
µA7815C |
VO = 15 V |
|
|
|
|
|
|
|
|
|
|
|
1N4001 |
|
|
||
0.33 µF |
|
|
|
|
|
|
|
0.1 |
µF |
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 µF |
1 µF |
0.1 µF |
|
|
1N4001 |
−20-V Input |
µA7915C |
VO = −15 V |
1N4001
Figure 9. Regulated Dual Supply
10 Power Supply Recommendations
See Recommended Operating Conditions for the recommended power supply voltages for each variation of the μA78xx device. Different orderable part numbers will be able to tolerate different levels of voltage. It is also recommended to have a decoupling capacitor on the output of the μA78xx device's power supply to limit noise on the device input.
