rehabilitation - ремонт; реконструкция; благоустройство; санация (памятников), восстановление

service life – срок службы standpoint – позиция, точка зрения temporary bridge – временный мост transportation перевозка -

units - блоки

utilize - утилизировать, расходовать washout – смыв, размыв

UNIT .5

LIEUTENANT SCHMIDT BRIDGE

I.Read the text and get the information about the bridge

St. Petersburg is possibly one of the unique cities in the world that every night is split in two parts (from the beginning of May till the middle of November – navigation period). It is because there are 13 bridges that cross the river Neva and at night they open for at least four hours to let large ships pass.

In 1727 a temporary bridge was built at the location of the modern bridge. The place was chosen by Menshikov whose palace is located at the opposite bank. This bridge, named Issakievsky (fig.17) existed until the current bridge was built, at which time it was moved to the location of where Palace Bridge is located today.

The very first constant bridge across the Neva River and the first bridge on the way from the Gulf of Finland to the center of Saint Petersburg, the Blagoveshinsky Bridge was opened on 12th of November in 1850. It was named after the Blagoveshenskaya Church on the left bridge of Neva, but in 5 years, after the death of Russian Emperor Nicholas I, the bridge was re-named to Nikolaevsky Bridge. In1918 the bridge got its third name after Lieutenant Peter Schmidt - a Russian officer and

a hero of the 1905 revolution, who organized uprising of the Black Sea Fleet and was executed by the tsarist government.

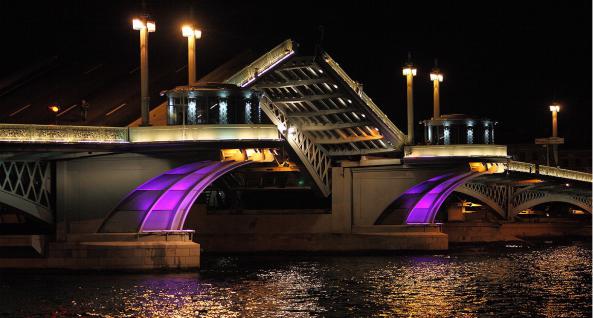

Fig. 18. Designed name - Nevsky most (bridge)

20

II.Give the short information about the bridge using the facts from in ex I

III. Try to describe the other bridge of such a type using the following words: pedestrian and vehicular traffic, crosses, was opened, girder bridge, it was design, in memory of, is located at.

IV.Read the text about Stanislav Kierbedz and make your own plan in the form of questions for text retelling.

The Blagoveshinsky Bridge was built in 1843-1850. It was designed by Stanisław Kierbedź, a Polish engineer working in Russia . The architect Alexander Brullov participated in the decoration.

The construction was a cast iron bridge with a bascule section. At the time, it was the longest bridge in Europe. According to the legend, the Russian Tzar, Nicholas I promised to Kierbedź to give him a promotion for every completed flight. After the bridge

was completed with eight flights total in it, Kierbedź was promoted to the rank of General, but actually when he started the construction he already had a rank of Podpolkovnik (i.e. lieutenant colonel). In 2006 the total reconstruction of the bridge began with the building of new, temporary bridge close to the existed one (fig.19).

Inhabitants of St.Petersburg immediately called this temporary bridge "Lieutenant Schmidt's Son". Playing an important role as the gate to the city for sea-going vessels, this 24 meters wide and 301 meters long bridge offers wonderful panoramic views to the Admiralty and University Embankment.

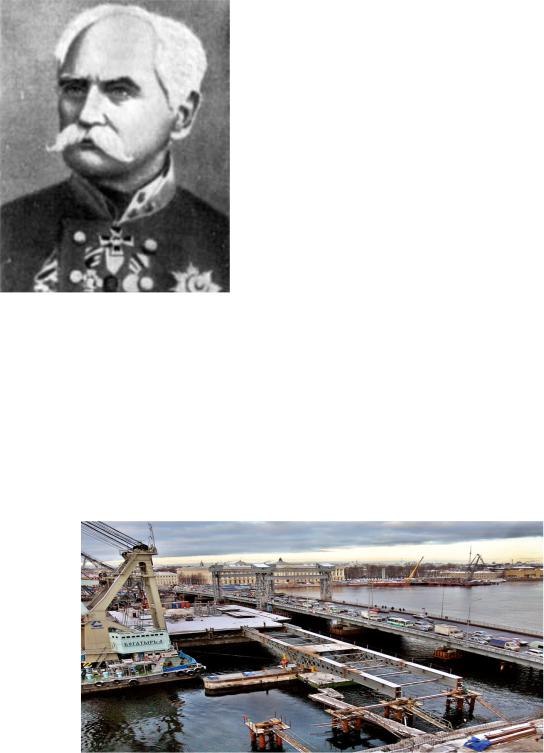

Fig. 19. 20062007 Reconstruction of the bridge.

21

III. Translate the text from Russian into English

Это мост во многом первый. Первый построенный постоянный мост через реку Неву. Построен он был в 1842 - 1850годах по проекту инженера С.В. Кербедза (архитектурное оформление архитектора А.П. Брюллова). На тот момент 8-пролетный чугунно-арочный мост длиной 300 и шириной 20 метров. был самым протяженным в Европе. Семь пролетов перекрывались пологими чугунными арками, а восьмой, расположенный у правого берега, был разводным. Стыки между чугунными блоками были заполнены прокладками из свинца. Масса всех металлических конструкций составляла ни много ни мало 95000 тонн.

VI. Put the verbs in brackets into the proper grammar form in Passive or Active voices.

Fig. 20. Temporary bridge next to dismantled Lieutenant Schmidt Bridge

In 2006 a reconstruction of the bridge (to begin). Since it (to close) completely to traffic for over a year, a temporary bridge (to construct) between September 2005 and May 2006. During the reconstruction all traffic, both pedestrian and motorized, (to move) across the temporary bridge. In May 2006 the Lieutenant Schmidt Bridge (to close) to traffic, and the dismantling of the spans, and then, of bridge supports to begin). The reconstruction (to complete) on August 15, 2007, slightly over two years after work (to begin) . During reconstruction the deck (to widen from 24 m to 37 m.

22

VIII.Speak about the bridge construction peculiarities using the following words:

Word list girder bridge

pedestrian -пешеходный

temporary bridge – временный мост cast iron bridge – чугунный мост promotion – продвижение completed – завершенный

flight – пролет

rank of General – звание генерала sea-going vessels – морские суда dismantle –, демонтировать, раздевать motorized – моторизованный

bascule –ферма моста

vessels -корабль

SUM UP TEST

•Drawbridge

•A) – structure high above carries a suspended

•B) the bridge deck, which is curved and pivoted at each end, is lifted at an an-

gle

•C) the bridge deck is hinged on one end

•

•Bascule bridge

•A) with multiple sections that collapse together horizontally

•B) drawbridge hinged on pins with a counterweight to facilitate raising ; road

or rail

•C) the bridge deck rotates around a fixed point

•

ORolling bascule bridge

OA) the bridge deck, which is curved and pivoted at each end, is lifted at

an angle)

•B) with longitudinal divisions between multiple bascule sections that rise to various angles of elevation, forming a fan arrangement.

•C) an unhinged drawbridge lifted by the rolling of a large gear segment along a horizontal rack

O

•Vertical-lift bridge

•A) the bridge deck is lifted by counterweighted cables mounted on towers ; road or rail

23

•B) the bridge deck rotates around a fixed point, usually at the centre, but may resemble a gate in its operation ; road or rail

•C) a structure high above carries a suspended, ferry-like structure

•

•Table bridge

•A) the bridge deck, which is curved and pivoted at each end, is lifted at an an-

gle

•B) a lift bridge with the lifting mechanism mounted underneath it

•C) the bridge deck, which is curved and pivoted at each end, is lifted at an an-

gle

•

•Swing bridge

•A)– a passenger bridge to an airplane. One end is mobile with height, yaw, and tilt adjustments on the outboard end

•B)a design of retractable floating bridge in the Netherlands

•C) the bridge deck rotates around a fixed point, usually at the centre, but may resemble a gate in its operation ; road or rail

•

•Retractable bridge (Thrust bridge)

•A)– the bridge deck is retracted to one side

•B) a lift bridge with the lifting mechanism mounted underneath it

•C) an unhinged drawbridge lifted by the rolling of a large gear segment along a horizontal rack

•

•Submersible bridge

•A) also called a ducking bridge, the bridge deck is lowered down into the water.

•B) the bridge deck rotates around a fixed point, usually at the centre, but may resemble a gate in its operation

•C) the bridge deck, which is curved and pivoted at each end, is lifted at an angle)

•Tilt bridge

•A)

•B) the bridge deck, which is curved and pivoted at each end, is lifted at an angle

•C) the bridge deck is hinged on one end
