1N4001G to 1N4007G
Rectifiers
Product specification |
1996 May 24 |
Supersedes data of April 1992
File under Discrete Semiconductors, SC01
Philips Semiconductors |
Product specification |
|
|
|
|
Rectifiers |
1N4001G to 1N4007G |
|
|
|
|
FEATURES
∙Glass passivated
∙High maximum operating temperature
∙Low leakage current
∙Excellent stability
∙Available in ammo-pack.
LIMITING VALUES
DESCRIPTION |
This package is hermetically sealed |
|
Rugged glass package, using a high |
and fatigue free as coefficients of |
|
expansion of all used parts are |
||
temperature alloyed construction. |
||
matched. |
||
|
||
k |
a |
|
2/3 page (Datasheet) |
|
|
|
MAM047 |
Fig.1 Simplified outline (SOD57) and symbol.
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
|
|
VRRM |
repetitive peak reverse voltage |
|
|
|
|
|
|
1N4001G |
|
− |
50 |
V |
|
|
1N4002G |
|
− |
100 |
V |
|
|
1N4003G |
|
− |
200 |
V |
|
|
1N4004G |
|
− |
400 |
V |
|
|
1N4005G |
|
− |
600 |
V |
|
|
1N4006G |
|
− |
800 |
V |
|
|
1N4007G |
|
− |
1000 |
V |
|
|
|
|
|
|
|
|
VR |
continuous reverse voltage |
|
|
|
|
|
|
1N4001G |
|
− |
50 |
V |
|
|
1N4002G |
|
− |
100 |
V |
|
|
1N4003G |
|
− |
200 |
V |
|
|
1N4004G |
|
− |
400 |
V |
|
|
1N4005G |
|
− |
600 |
V |
|
|
1N4006G |
|
− |
800 |
V |
|
|
1N4007G |
|
− |
1000 |
V |
|
|
|
|
|
|
|
|
IF(AV) |
average forward current |
averaged over any 20 ms |
− |
1.00 |
A |
|
|
|
|
period; Tamb = 75 °C; see Fig.2 |
|
|
|
|
|
|
averaged over any 20 ms |
− |
0.75 |
A |
|
|
|
period; Tamb = 100 °C; see Fig.2 |
|
|
|
IF |
continuous forward current |
Tamb = 75 °C; see Fig.2 |
− |
1.00 |
A |
|
IFRM |
repetitive peak forward current |
|
− |
10 |
A |
|
IFSM |
non-repetitive peak forward current |
half sinewave; 60 Hz |
− |
30 |
A |
|
Tstg |
storage temperature |
|
−65 |
+175 |
°C |
|
Tj |
junction temperature |
|
−65 |
+175 |
°C |
|
1996 May 24 |
2 |
Philips Semiconductors |
|
|
Product specification |
||||
|
|
|
|
|
|
|
|
Rectifiers |
|
1N4001G to 1N4007G |
|||||
|
|
|
|
|
|
|
|
ELECTRICAL CHARACTERISTICS |
|
|
|
|
|
||
Tj = 25 °C; unless otherwise specified. |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
|
CONDITIONS |
|
MAX. |
UNIT |
|
|
|
|
|
|
|
|
|
VF |
forward voltage |
IF = 1 A; see Fig.3 |
|
1.1 |
V |
||
VF(AV) |
full-cycle average forward voltage |
IF(AV) = 1 A |
|
|
0.8 |
V |
|
IR |
reverse current |
VR = VRmax |
|
|
10 |
mA |
|
|
|
|
VR = VRmax; Tamb = 100 °C |
|
50 |
mA |
|
IR(AV) |
full-cycle average reverse current |
VR = VRRMmax; Tamb = 75 °C |
|
30 |
mA |
||
THERMAL CHARACTERISTICS |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
|
CONDITIONS |
|
VALUE |
UNIT |
|
|
|
|
|
|
|
||
Rth j-tp |
thermal resistance from junction to tie-point |
lead length = 10 mm |
|
46 |
K/W |
||
Rth j-a |
thermal resistance from junction to ambient |
note 1 |
|
100 |
K/W |
||
Note
1.Device mounted on epoxy-glass printed-circuit board, 1.5 mm thick; thickness of copper ³40 mm, see Fig.4. For more information please refer to the “General Part of Handbook SC01”.
1996 May 24 |
3 |
Philips Semiconductors |
Product specification |
|
|
Rectifiers |
1N4001G to 1N4007G |
|
|
GRAPHICAL DATA |
|
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
|
|
MBH385 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
handbook, halfpage |
|
|
|
|
||
1.5 |
|
|
MBH386 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
handbook, halfpage |
|
|
|
|
|
|
|
|
|
IF |
|
|
|
IF |
|
|
|
|
|
(A) |
|
|
|
(A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
0.5 |
|
|
|
|
(1) |
(2) |
(3) |
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
10−1 |
|
|
|
|
|
0 |
|
|
|
0 |
0.5 |
|
1 |
VF (V) |
1.5 |
|
|
|
|
|
|
|
|
||
0 |
100 |
Tamb (°C) |
200 |
|
|
|
|
|
|
|
|
(1) Tamb = 100 °C. |
|
|
|
|
|||
|
|
|
|
|
|
|
|||
|
|
|
(2) |
Tamb = |
20 °C. |
|
|
|
|
|
|
|
(3) Tamb = −50 °C. |
|
|
|
|
||

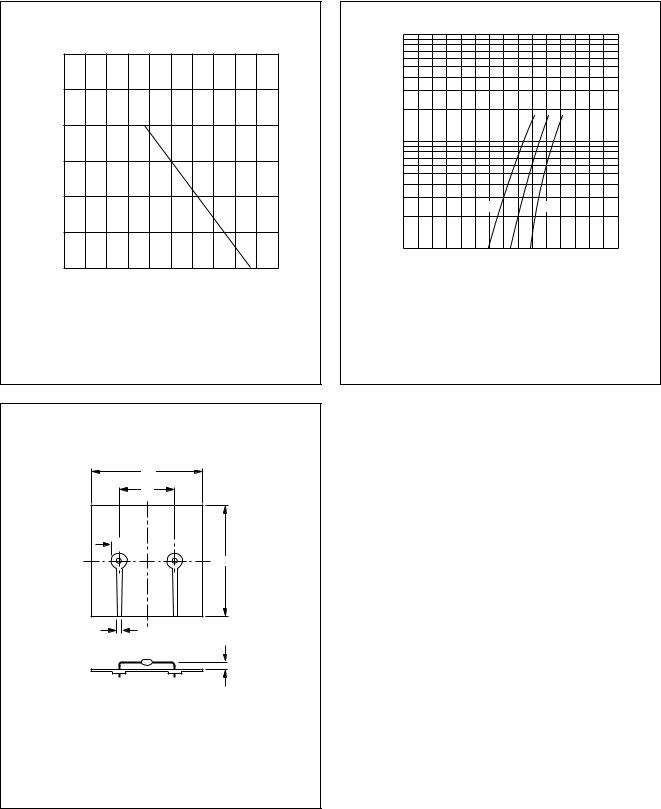

Fig.2 Maximum forward current as a function of |
Fig.3 Forward current as a function of forward |
ambient temperature. |
voltage; typical values. |
50
handbook, halfpage
25
7
50
2
3
MGA200
Dimensions in mm.
Fig.4 Device mounted on a printed-circuit board.
1996 May 24 |
4 |
Philips Semiconductors |
Product specification |
|
|
Rectifiers |
1N4001G to 1N4007G |
|
|
PACKAGE OUTLINE |
|
handbook, full pagewidth |
k |
a |
0.81
max
3.81 |
28 min |
4.57 |
28 min |
MBC880 |
max |
max |
|
||
|
|
|
Dimensions in mm.
Fig.5 SOD57.
