DISCRETE SEMICONDUCTORS

M3D176

BA316; BA317; BA318

High-speed diodes

Product specification

1996 Apr 03

Supersedes data of April 1992

File under Discrete Semiconductors, SC01

Philips Semiconductors

Product specification









High-speed diodes

BA316; BA317; BA318









FEATURES

Hermetically sealed leaded glass SOD27 (DO-35) package

High switching speed: max. 4 ns

General application

Continuous reverse voltage: 10 V, 30 V, 50 V

Repetitive peak reverse voltage: max. 15 V, 40 V, 60 V

Repetitive peak forward current: max. 225 mA

Forward voltage: max. 1.1 V.

APPLICATIONS

High-speed switching.

DESCRIPTION

The BA316, BA317, BA318 are high-speed switching diodes fabricated in planar technology, and encapsulated in hermetically sealed leaded glass SOD27 (DO-35) packages.

k

a

handbook, halfpage



MAM246

The diodes are type branded.

Fig.1 Simplified outline (SOD27; DO-35) and symbol.

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134).

SYMBOL

PARAMETER

CONDITIONS

MIN.

MAX.

UNIT













VRRM

repetitive peak reverse voltage









BA316



15

V



BA317



40

V



BA318



60

V













VR

continuous reverse voltage











BA316



10

V



BA317



30

V



BA318



50

V













IF

continuous forward current

see Fig.2; note 1

100

mA

IFRM

repetitive peak forward current



225

mA

IFSM

non-repetitive peak forward current

square wave; Tj = 25 °C prior to











surge; see Fig.4











t = 1 μs

4

A





t = 1 ms

1

A





t = 1 s

0.5

A













Ptot

total power dissipation

Tamb = 25 °C; note 1

350

mW

Tstg

storage temperature



65

+200

°C

Tj

junction temperature



200

°C

Note

1. Device mounted on an FR4 printed circuit-board; lead length 10 mm.

1996 Apr 03

2

Philips Semiconductors





Product specification













High-speed diodes

BA316; BA317; BA318













ELECTRICAL CHARACTERISTICS









Tj = 25 °C; unless otherwise specified.





















SYMBOL

PARAMETER

CONDITIONS

MIN.

MAX.

UNIT













VF

forward voltage

see Fig.3











IF = 1 mA

700

mV





IF = 10 mA

850

mV





IF = 100 mA

1100

mV

IR

reverse current

see Fig.5









BA316

VR = 10 V

200

nA





VR = 10 V; Tj = 150 °C

100

μA



BA317

VR = 10 V

50

nA





VR = 30 V

200

nA





VR = 30 V; Tj = 150 °C

100

μA



BA318

VR = 30 V

50

nA





VR = 50 V

200

nA





VR = 50 V; Tj = 150 °C

100

μA

Cd

diode capacitance

f = 1 MHz; VR = 0; see Fig.6

2

pF

trr

reverse recovery time

when switched from IF = 10 mA to

4

ns





IR = 60 mA; RL = 100 Ω;











measured at IR = 1 mA; see Fig.7







Vfr

forward recovery voltage

when switched from IF = 50 mA;

2.5

V





tr = 20 ns; see Fig.8







THERMAL CHARACTERISTICS

SYMBOL

PARAMETER

CONDITIONS

VALUE

UNIT











Rth j-tp

thermal resistance from junction to tie-point

lead length 10 mm

240

K/W

Rth j-a

thermal resistance from junction to ambient

lead length 10 mm; note 1

500

K/W

Note

1. Device mounted on a printed circuit-board without metallization pad.

1996 Apr 03

3

Philips Semiconductors

Product specification





High-speed diodes

BA316; BA317; BA318





GRAPHICAL DATA



















200









MBG452

300





MBG465

















handbook, halfpage











handbook, halfpage



















IF







IF











(mA)







(mA)































200



















(1)

(2)

(3)



100































100







0





o





0







0

100

Tamb

C)

200

0

1

VF (V)

2





(











(1)

Tj = 175 °C; typical values.



(2)

Tj = 25

°C; typical values.

Device mounted on an FR4 printed-circuit board; lead length 10 mm.

(3)

Tj = 25

°C; maximum values.

Fig.2 Maximum permissible continuous forward



Fig.3 Forward current as a function of

current as a function of ambient temperature.





forward voltage.

MBG704

102 handbook, full pagewidth

IFSM

(A)

10

1

101

1

10

102

103

tp (μs)

104











Based on square wave currents.

Tj = 25 °C prior to surge.

Fig.4 Maximum permissible non-repetitive peak forward current as a function of pulse duration.

1996 Apr 03

4

Philips Semiconductors

Product specification





High-speed diodes

BA316; BA317; BA318





103

MGD008





handbook, halfpage

IR

(μA) 102

10

1

101

102

0

100

200



Tj

(oC)

VR = VRmax.

Solid line; maximum values.

Dotted line; typical values.

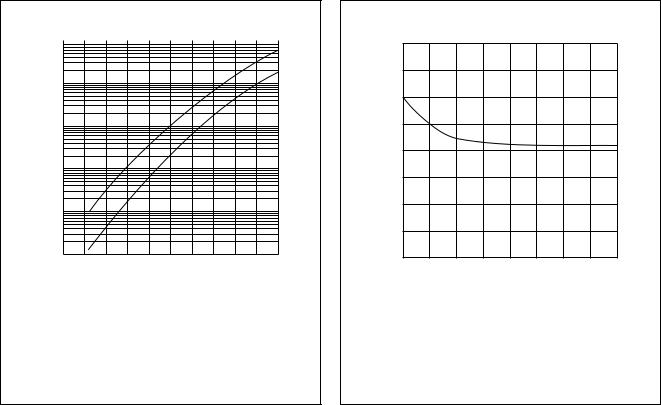

Fig.5 Reverse current as a function of junction temperature.

MGD004

1.2 handbook, halfpage

Cd (pF)

1.0

0.8

0.6

0.4

0

10

VR

(V)

20







f = 1 MHz; Tj = 25 °C.

Fig.6 Diode capacitance as a function of reverse voltage; typical values.

1996 Apr 03

5

Philips Semiconductors

Product specification





High-speed diodes

BA316; BA317; BA318





handbook, full pagewidth



t r

t p















t





D.U.T.

10%





R = 50 Ω

IF



I F

t rr

S



SAMPLING



t











OSCILLOSCOPE











V = VR IF x R S



R i = 50 Ω











90%

(1)





VR















MGA881





input signal

output signal

(1) IR = 1 mA.

Fig.7 Reverse recovery voltage test circuit and waveforms.

I

1 k Ω

450 Ω





I

90%



V











RS = 50 Ω

OSCILLOSCOPE





V fr



D.U.T.

Ω









R i = 50











10%









MGA882





t

t





t r

t p











input



output







signal



signal

Fig.8 Forward recovery voltage test circuit and waveforms.

1996 Apr 03

6

Philips Semiconductors

Product specification





High-speed diodes

BA316; BA317; BA318





PACKAGE OUTLINE



handbook, full pagewidth









































0.56





















































































max





1.85







25.4 min





4.25





25.4 min





MLA428 - 1





max















max















Dimensions in mm.

























































Fig.9 SOD27 (DO-35).



























































DEFINITIONS

























































































Data Sheet Status























































































Objective specification



This data sheet contains target or goal specifications for product development.













































Preliminary specification



This data sheet contains preliminary data; supplementary data may be published later.













































Product specification



This data sheet contains final product specifications.





















































Limiting values











































Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the specification is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.
