DISCRETE SEMICONDUCTORS
book, halfpage
M3D088
BAS55
High-speed diode
Product specification |
1996 Apr 23 |
Supersedes data of November 1993
File under Discrete Semiconductors, SC01
Philips Semiconductors |
Product specification |
|
|
|
|
High-speed diode |
BAS55 |
|
|
|
|
FEATURES
∙Small plastic SMD package
∙High switching speed: max. 6 ns
∙Continuous reverse voltage: max. 60 V
∙Repetitive peak reverse voltage: max. 60 V
∙Repetitive peak forward current: max. 600 mA
∙Forward voltage: max. 1 V.
APPLICATIONS
∙High-speed switching in surface mounted circuits.
DESCRIPTION
The BAS55 is a high-speed switching diode fabricated in planar technology, and encapsulated in the small rectangular plastic SMD SOT23 package.
PINNING
PIN |
DESCRIPTION |
|
|
1 |
anode |
|
|
2 |
not connected |
|
|
3 |
cathode |
|
|
handbook, |
2 |
1 |
2
1 n.c.
3
3 |
MAM185 |
Marking code: L5p.
Fig.1 Simplified outline (SOT23) and symbol.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
VRRM |
repetitive peak reverse voltage |
|
− |
60 |
V |
VR |
continuous reverse voltage |
|
− |
60 |
V |
IF |
continuous forward current |
see Fig.2; note 1 |
− |
250 |
mA |
IFRM |
repetitive peak forward current |
|
− |
600 |
mA |
IFSM |
non-repetitive peak forward current |
square wave; Tj = 25 °C prior to |
|
|
|
|
|
surge; see Fig.4 |
|
|
|
|
|
t = 1 μs |
− |
9 |
A |
|
|
t = 100 μs |
− |
3 |
A |
|
|
t = 10 ms |
− |
1.7 |
A |
|
|
|
|
|
|
Ptot |
total power dissipation |
Tamb = 25 °C; note 1 |
− |
250 |
mW |
Tstg |
storage temperature |
|
−65 |
+150 |
°C |
Tj |
junction temperature |
|
− |
150 |
°C |
Note
1. Device mounted on an FR4 printed-circuit board.
1996 Apr 23 |
2 |
Philips Semiconductors |
|
|
Product specification |
|||
|
|
|
|
|
|
|
High-speed diode |
|
|
|
BAS55 |
||
|
|
|
|
|
|
|
ELECTRICAL CHARACTERISTICS |
|
|
|
|
|
|
Tj = 25 °C; unless otherwise specified. |
|
|
|
|
|
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
|
UNIT |
|
|
|
|
|
|
|
VF |
forward voltage |
see Fig.3; IF = 200 mA; DC value; |
− |
1.0 |
|
V |
|
|
note 1 |
|
|
|
|
|
|
|
|
|
|
|
IR |
reverse current |
see Fig.5 |
|
|
|
|
|
|
VR = 60 V |
− |
100 |
|
nA |
|
|
VR = 60 V; Tj = 150 °C |
− |
100 |
|
μA |
Cd |
diode capacitance |
f = 1 MHz; VR = 0; see Fig.6 |
− |
2.5 |
|
pF |
trr |
reverse recovery time |
when switched from IF = 400 mA to |
− |
6 |
|
ns |
|
|
IR = 400 mA; RL = 100 Ω; |
|
|
|
|
|
|
measured at IR = 40 mA; see Fig.7 |
|
|
|
|
Vfr |
forward recovery voltage |
when switched to IF = 400 mA; |
− |
2 |
|
V |
|
|
tr = 30 ns; see Fig.8 |
|
|
|
|
|
|
when switched to IF = 400 mA; |
− |
1.5 |
|
V |
|
|
tr = 100 ns; see Fig.8 |
|
|
|
|
Note
1. Tamb = 25 °C; device has reached the thermal equilibrium when mounted on an FR4 printed-circuit board.
THERMAL CHARACTERISTICS
SYMBOL |
PARAMETER |
|
CONDITIONS |
VALUE |
UNIT |
|
|
|
|
|
|
Rth j-tp |
thermal resistance from junction to tie-point |
|
|
330 |
K/W |
Rth j-a |
thermal resistance from junction to ambient |
note 1 |
|
500 |
K/W |
Note
1. Device mounted on an FR4 printed-circuit board.
1996 Apr 23 |
3 |
Philips Semiconductors |
Product specification |
|
|
High-speed diode |
BAS55 |
|
|

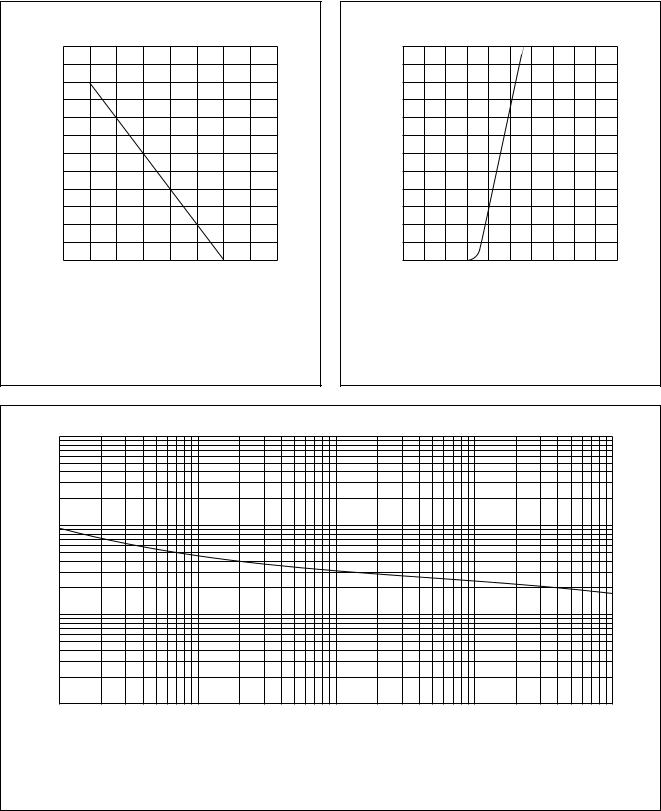

GRAPHICAL DATA |
|
MBG441
300 handbook, halfpage
IF (mA)
200
100
0
0 |
100 |
Tamb |
o |
C) |
200 |
|
|
( |
|
Device mounted on an FR4 printed-circuit board.
Fig.2 Maximum permissible continuous forward current as a function of ambient temperature.
MBH279
300 handbook, halfpage
IF (mA)
200
100
0
0 |
1 |
VF (V) |
2 |
|
|
|
Tj = 25 °C.
Fig.3 Forward current as a function of forward voltage; typical values.
MBG703
102 handbook, full pagewidth
IFSM
(A)
10
1
10−1
1 |
10 |
102 |
103 |
tp (μs) |
104 |
|
|
|
|
|
Based on square wave currents.
Tj = 25 °C prior to surge.
Fig.4 Maximum permissible non-repetitive peak forward current as a function of pulse duration.
1996 Apr 23 |
4 |
Philips Semiconductors |
Product specification |
|
|
High-speed diode |
BAS55 |
|
|
102 |
MBH282 |
|
handbook, halfpage
IR
(μA)
10
(1)(2)
1
10−1
10−2
0 |
100 |
Tj |
( |
o |
C) |
200 |
|
|
|
(1)VR = 60 V; maximum values.
(2)VR = 60 V; typical values.
Fig.5 Reverse current as a function of junction temperature.
MBH283
2.0 handbook, halfpage
Cd (pF)
1.5
1.0
0.5
0
0 |
10 |
20 |
30 |
|
|
VR |
(V) |
f = 1 MHz; Tj = 25 °C.
Fig.6 Diode capacitance as a function of reverse voltage; typical values.
1996 Apr 23 |
5 |
Philips Semiconductors |
Product specification |
|
|
High-speed diode |
BAS55 |
|
|
handbook, full pagewidth |
|
t r |
t p |
|
|
|
|
||
|
|
|
t |
|
|
D.U.T. |
10% |
|
|
R = 50 Ω |
IF |
|
I F |
t rr |
S |
|
SAMPLING |
|
t |
|
|
|
||
|
|
OSCILLOSCOPE |
|
|
|
|
|
|
|
V = VR IF x R S |
|
R i = 50 Ω |
|
|
|
|
|
90% |
(1) |
|
|
VR |
|
|
|
|
|
|
|
|
|
MGA881 |
|
|
input signal |
output signal |
(1) IR = 40 mA.
Fig.7 Reverse recovery voltage test circuit and waveforms.
I |
1 k Ω |
450 Ω |
|
|
I |
90% |
|
V |
|
|
|
|
|
|
RS = 50 Ω |
OSCILLOSCOPE |
|
|
V fr |
|
|
D.U.T. |
Ω |
|
|
|
|
R i = 50 |
|
|
|
|
|
|
10% |
|
|
|
|
MGA882 |
|
|
t |
t |
|
|
t r |
t p |
|
|
|
|
|
input |
|
output |
|
|
|
signal |
|
signal |
Input signal: forward pulse duration tp = 300 ns; duty factor δ = 0.01.
Fig.8 Forward recovery voltage test circuit and waveforms.
1996 Apr 23 |
6 |
Philips Semiconductors |
Product specification |
|
|
High-speed diode |
BAS55 |
|
|
PACKAGE OUTLINE |
|
|
|
|
|
3.0 |
|
|
book, full pagewidth |
|
|
|
2.8 |
|
|
|
|
|
|
1.9 |
B |
|
|
0.150 |
|
|
|
|
|
|
|
|
|
|
|
|
0.75 |
0.090 |
|
0.95 |
|
A |
0.2 M A B |
|
|
|
||||
0.60 |
|
|
|
|
|
|
|
|
|
2 |
1 |
|
|
10o |
0.1 |
|
|
|
|
|
max |
|
|
|
1.4 |
2.5 |
|
max |
|
|
|
|||
|
|
|
|
1.2 |
max |
|
|
10o |
|
|
|
||
|
|
|
|
|
|
|
|
max |
|
|
|
|
|
|
|
|
3 |
|
|
|
1.1 |
|
|
0 |
|
|
|
max |
30o |
0.48 |
|
0.1 M A B |
MBC846 |
|
0.1 |
|
|||||
|
max |
|
|
|
|
|
|
|
|
TOP VIEW |
|
|
|
Dimensions in mm.
Fig.9 SOT23.
