112• Components of WAGO-I/O-PRO 32

Managing Projects

If a password for the user group 0 is existing while the project is loaded, then a password will be demanded for all groups when the project is opened. For this the following dialog box appears:

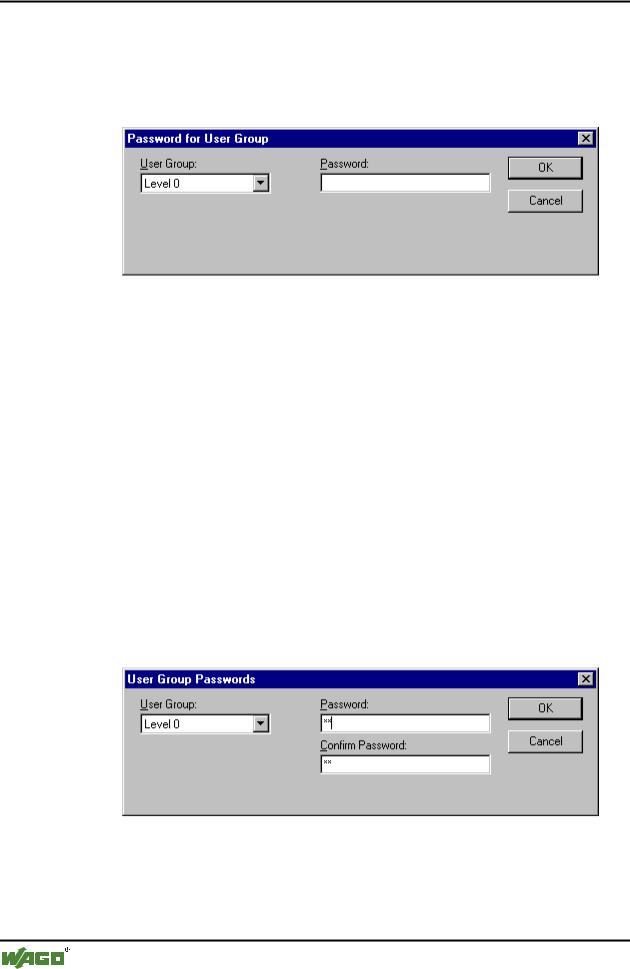

x Dialog box for password entry

In the combobox User group on the left side of the dialog box, enter the group to which you belong and enter on the right side the relevant password. Press OK. If the password does not agree with the saved password, then the message appears:

"The password is not correct."

Only when you have entered the correct password the project can be opened.

With the command 'Passwords for user group' you can assign the passwords, and with 'Object' 'Access rights' you can define the rights for single objects or for all of them.

4.3.24'Project' 'Passwords for user groups'

With this command you open the dialog box for password assignment for user groups. This command can only be executed by members of group 0. When the command has been given, then the following dialog box appears:

x Dialog box for password assignment

In the left combobox User group you can select the group. Enter the desired password for the group in the field Password. For each typed character an asterisk (*) appears in the field. You must repeat the same password in the field Confirm password. Close the dialog box after each password entry with OK. If you get the message:

WAGO-I/O-SYSTEM 759 WAGO-I/O-PRO 32
