3.6.4. GPACK - Графический вспомогательный редактор

Graphic assistance is a picture chart assisting with input. It not only prompts complete designation of each parameter intended to input, but also prompts Рисунок explanation on the right half side of the screen window.
	[EPI PROGRAM].
Cursor bar moves to the specified GPACK code.

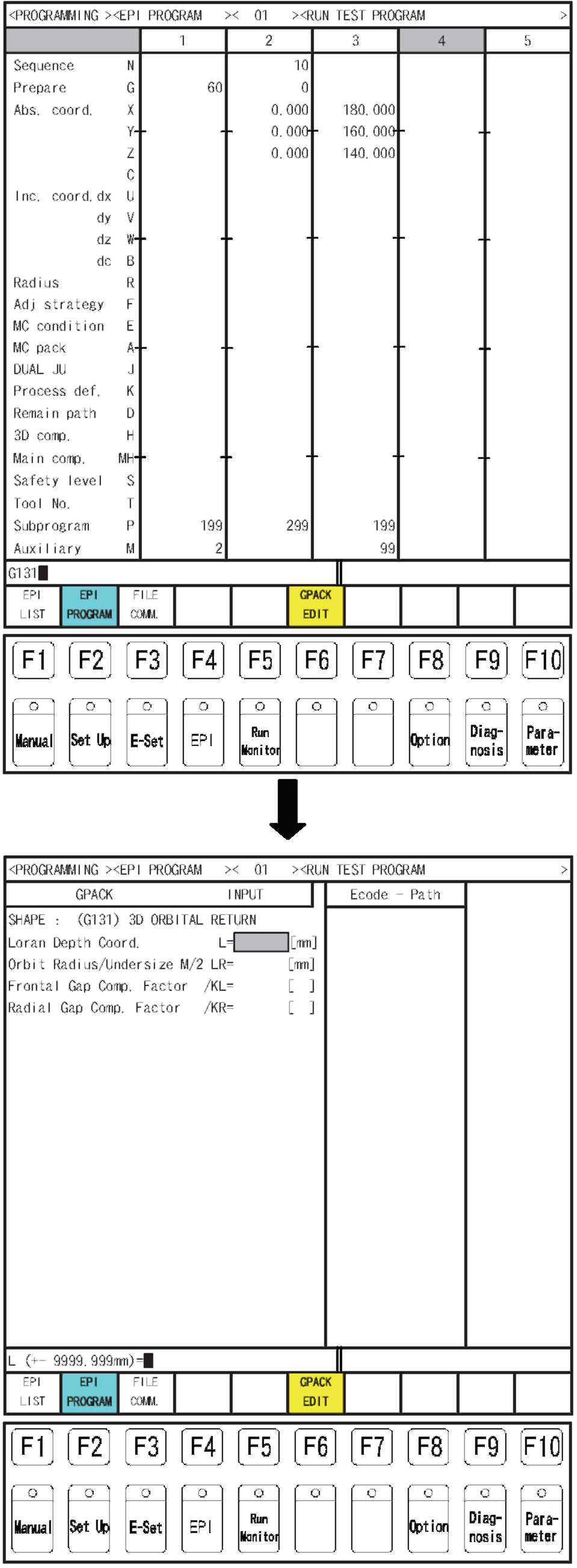

	[GPACK EDIT], Display G131 graphic charts and allow entry of parameters. Move cursor bar to fill complete parameters of shaping GPACK.
Input L-10. LR1.0 only and do not enter addressing code.

30604- 1

3.6. Программирование

_{∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙}

: (1) Parameters of shaping GPACK are accessible either by GPACK graphic assistance or by direct input of shaping parameters under EPI. (2) Parameters with prefix "/" suggest an optional input choice. Lacking this input data, the system will run by default values. (3) GPACK Only can be EPI PROGRAM under the status of edition.

30604-2

3.6. Программирование

_{∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙}

3.6.5. Редактирование в программе EPI

Provide an editor in the EPI program, and can execute an APACK management for the machining steps, remains and parameters. 1.APACK checking and editing When a user set up a maker or user APACK in the EPI program, he can view the contents in here and edit it. After editing the APACK file in the EPI program, but the technology database are not any changed. If user want modify the technology database, then must get the pass-word(that inform from the service company) and input the password at he [EL-WK select] main function in the ESET screen.

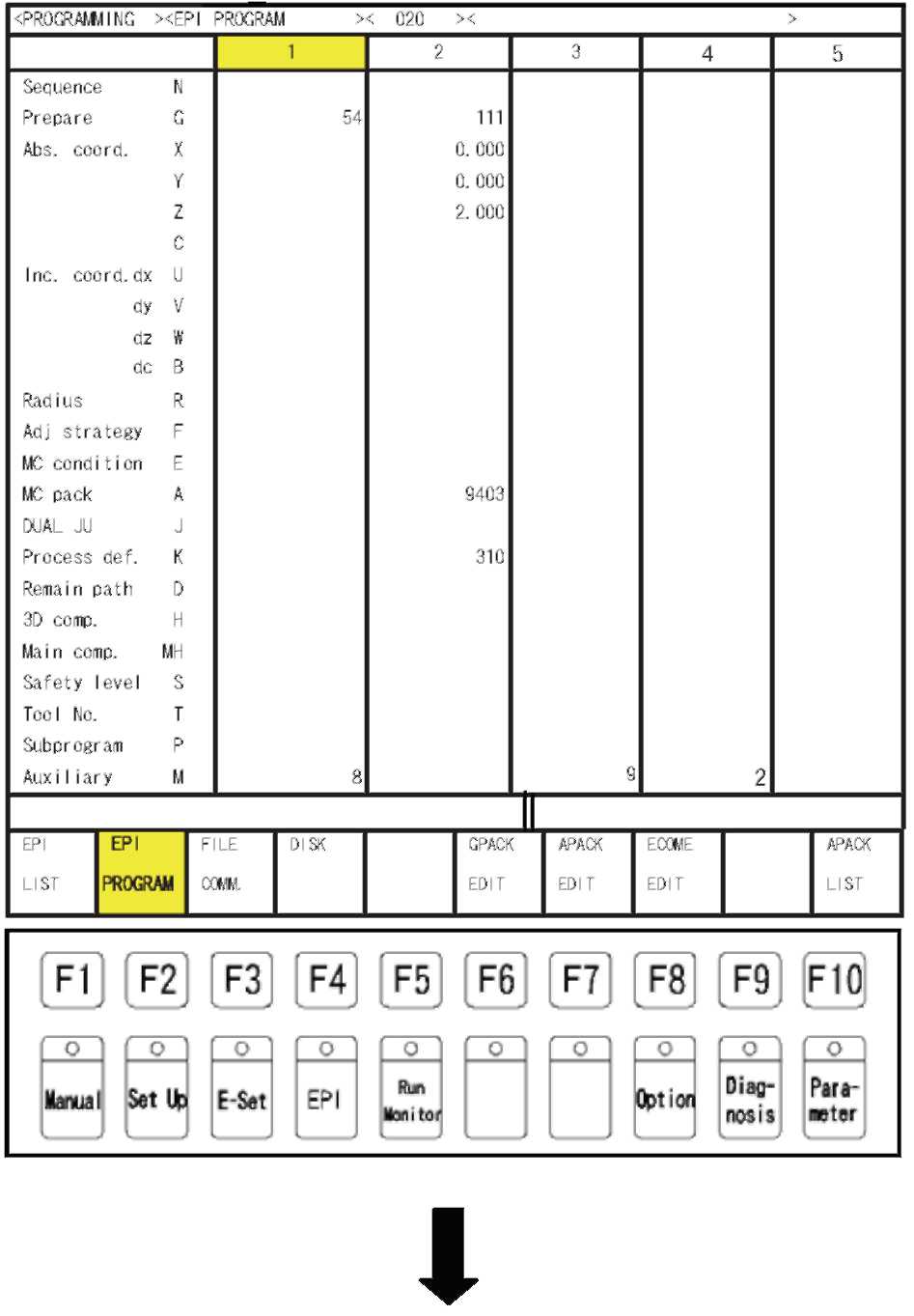

	press [EPI] (экранная клавиша) press [EPI PROGRAM] main key Enter the program edit and light bar move to the APACK l ine, and the same as Рисунок. press [APACK EDIT]

30605 – 1

3.6. Программирование

_{∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙}

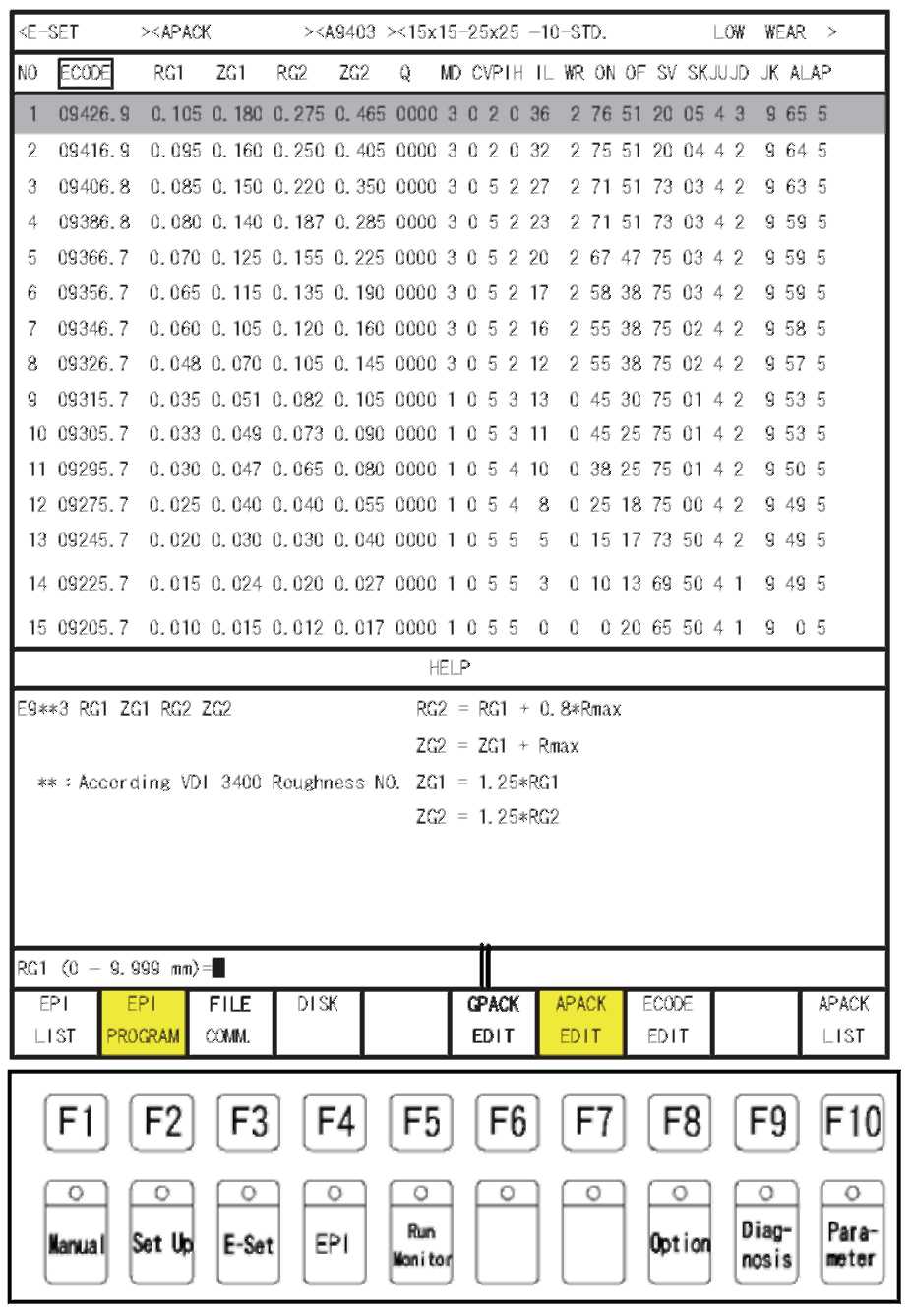

Edit the APACK screen as the same as the APACK editing method in the [ESET] screen. Note1: Don't edit the content of APACK in the machining. Note2: Change the APACK screen by the page up and down key, user can view all the APACK in the program. Note3: From the HPC Version 12.30, can not modify the contents of the MAKER APACK in the ESET screen, that is locked with a password. But a APACK/ECODE editing is full free in the EPI program. Be carefully, the responsibility of the rightness is user's duty.
