Описание структурных элементов программы
Вершинный шейдер std_dp_VS определяет вершины модели и в соответствии с ее формой применяет текстуру.
Пиксельный шейдер metal_shared нормализует вектора и задает цвет текстуре.
Пиксельный шейдер metalPS осуществляет предварительную подготовку цвета.
Пиксельный шейдер metalPS_t осуществляет окончательное применение цвета в мировых координатах
Пиксельный шейдер metalQPS осуществляет предварительную подготовку отражения и источника света
Пиксельный шейдер metalQPS_t отображает отражения и тени на лицевой стороне модели.

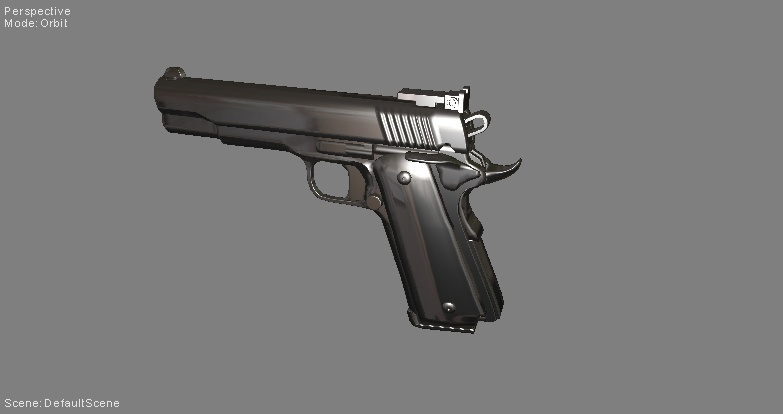

Изображение, полученное с помощью шейдеров:
Заключение
В результате работы я получил базовые знания в области создания трехмерных изображений с помощью шейдеров. С разрешения преподавателя использовал заранее готовую модель и текстуру, и после изучения начальных аспектов темы с помощью программы FX Composer совместил текстуру с моделью, выставил источник света и выбрал ракурс, с которого получил двухмерное изображение приложенное выше. При дальнейшем самостоятельном изучении компьютерной графики я планирую глубже разобраться в заинтересовавшей меня теме, получить навыки в создании 3D моделей и текстур в различных редакторах.
Список литературы
http://ru.wikipedia.org/wiki/HLSL
http://www.gamedev.ru
http://netlib.narod.ru
http://developer.download.nvidia.com
Приложение
// #define _XSI_ /* predefined when running in XSI */
// #define TORQUE /* predefined in TGEA 1.7 and up */
// #define _3DSMAX_ /* predefined in 3DS Max */
#ifdef _3DSMAX_
int ParamID = 0x0003; /* Used by Max to select the correct parser */
#endif /* _3DSMAX_ */
#ifdef _XSI_
#define Main Static /* Technique name used for export to XNA */
#endif /* _XSI_ */
#ifndef FXCOMPOSER_VERSION /* for very old versions */
#define FXCOMPOSER_VERSION 180
#endif /* FXCOMPOSER_VERSION */
#ifndef DIRECT3D_VERSION
#define DIRECT3D_VERSION 0x900
#endif /* DIRECT3D_VERSION */
#define FLIP_TEXTURE_Y /* Different in OpenGL & DirectX */
/*** EFFECT-SPECIFIC CODE BEGINS HERE ****************************/
/******* Lighting Macros *******/
/** To use "Object-Space" lighting definitions, change these two macros: **/
#define LIGHT_COORDS "World"
// #define OBJECT_SPACE_LIGHTS /* Define if LIGHT_COORDS is "Object" */
float Script : STANDARDSGLOBAL <
string UIWidget = "none";
string ScriptClass = "object";
string ScriptOrder = "standard";
string ScriptOutput = "color";
// string Script = "Technique=Technique?Simple:Simple10:Textured:Textured10:SimpleFalloff:SimpleFalloff10:TexturedFalloff:TexturedFalloff10;";
> = 0.8;
/**** UNTWEAKABLES: Hidden & Automatically-Tracked Parameters **********/
// transform object vertices to world-space:
float4x4 gWorldXf : World < string UIWidget="None"; >;
// transform object normals, tangents, & binormals to world-space:
float4x4 gWorldITXf : WorldInverseTranspose < string UIWidget="None"; >;
// transform object vertices to view space and project them in perspective:
float4x4 gWvpXf : WorldViewProjection < string UIWidget="None"; >;
// provide tranform from "view" or "eye" coords back to world-space:
float4x4 gViewIXf : ViewInverse < string UIWidget="None"; >;
/************* TWEAKABLES **************/
// "DirPos" Lamp 0 /////////
float4 gLamp0DirPos : POSITION < // or direction, if W==0
string Object = "Light0";
string UIName = "Lamp 0 Position/Direction";
string Space = (LIGHT_COORDS);
> = {-0.5f,2.0f,1.25f,1.0};
float3 gLamp0Color : SPECULAR <
string UIName = "Lamp 0";
string Object = "Light0";
string UIWidget = "Color";
> = {1.0f,1.0f,1.0f};
float gLamp0Intensity <
string UIWidget = "slider";
float UIMin = 1.0;
float UIMax = 10000.0f;
float UIStep = 0.1;
string UIName = "Lamp 0 Quadratic Intensity";
> = 1.0f;
// Ambient Light
float3 gAmbiColor : AMBIENT <
string UIName = "Ambient Light";
string UIWidget = "Color";
> = {0.07f,0.07f,0.07f};
// surface color
float3 gSurfaceColor : DIFFUSE <
string UIName = "Surface";
string UIWidget = "Color";
> = {1,1,1};
float gSpecExpon <
string UIWidget = "slider";
float UIMin = 1.0;
float UIMax = 128.0;
float UIStep = 1.0;
string UIName = "Specular Exponent";
> = 12.0;
float gKd <
string UIWidget = "slider";
float UIMin = 0.0;
float UIMax = 1.0;
float UIStep = 0.01;
string UIName = "Diffuse";
> = 0.1;
float gKr <
string UIWidget = "slider";
float UIMin = 0.0;
float UIMax = 1.0;
float UIStep = 0.05;
string UIName = "Reflection";
> = 0.2;
texture gColorTexture : DIFFUSE <
string ResourceName = "default_color.dds";
string UIName = "Diffuse Texture";
string ResourceType = "2D";
>;
sampler2D gColorSampler = sampler_state {
Texture = <gColorTexture>;
#if DIRECT3D_VERSION >= 0xa00
Filter = MIN_MAG_MIP_LINEAR;
#else /* DIRECT3D_VERSION < 0xa00 */
MinFilter = Linear;
MipFilter = Linear;
MagFilter = Linear;
#endif /* DIRECT3D_VERSION */
AddressU = Wrap;
AddressV = Wrap;
};
texture gEnvTexture : ENVIRONMENT <
string ResourceName = "default_reflection.dds";
string UIName = "Environment";
string ResourceType = "Cube";
>;
samplerCUBE gEnvSampler = sampler_state {
Texture = <gEnvTexture>;
#if DIRECT3D_VERSION >= 0xa00
Filter = MIN_MAG_MIP_LINEAR;
#else /* DIRECT3D_VERSION < 0xa00 */
MinFilter = Linear;
MipFilter = Linear;
MagFilter = Linear;
#endif /* DIRECT3D_VERSION */
AddressU = Clamp;
AddressV = Clamp;
AddressW = Clamp;
};
/************* DATA STRUCTS **************/
/* data from application vertex buffer */
struct appdata {
float3 Position : POSITION;
float4 UV : TEXCOORD0;
float4 Normal : NORMAL;
float4 Tangent : TANGENT0;
float4 Binormal : BINORMAL0;
};
/* data passed from vertex shader to pixel shader */
struct vertexOutput {
float4 HPosition : POSITION;
float2 UV : TEXCOORD0;
// The following values are passed in "World" coordinates since
// it tends to be the most flexible and easy for handling
// reflections, sky lighting, and other "global" effects.
float3 LightVec : TEXCOORD1;
float3 WorldNormal : TEXCOORD2;
float3 WorldTangent : TEXCOORD3;
float3 WorldBinormal : TEXCOORD4;
float3 WorldView : TEXCOORD5;
};
/*********** vertex shader for pixel-shaded versions ******/
/*********** Generic Vertex Shader ******/
vertexOutput std_dp_VS(appdata IN,
uniform float4x4 WorldITXf, // our four standard "untweakable" xforms
uniform float4x4 WorldXf,
uniform float4x4 ViewIXf,
uniform float4x4 WvpXf,
uniform float4 LampDirPos
) {
vertexOutput OUT = (vertexOutput)0;
OUT.WorldNormal = mul(IN.Normal,WorldITXf).xyz;
OUT.WorldTangent = mul(IN.Tangent,WorldITXf).xyz;
OUT.WorldBinormal = mul(IN.Binormal,WorldITXf).xyz;
float4 Po = float4(IN.Position.xyz,1);
float4 Pw = mul(Po,WorldXf); // convert to "world" space
#ifdef OBJECT_SPACE_LIGHTS
float4 Lw = mul(LampDirPos,WorldXf); // convert to "world" space
#else /* !OBJECT_SPACE_LIGHTS -- standard world-space lights */
float4 Lw = LampDirPos;
#endif /* !OBJECT_SPACE_LIGHTS */
if (Lw.w == 0) {
OUT.LightVec = -normalize(Lw.xyz);
} else {
// we are still passing a (non-normalized) vector
OUT.LightVec = Lw.xyz - Pw.xyz;
}
#ifdef FLIP_TEXTURE_Y
OUT.UV = float2(IN.UV.x,(1.0-IN.UV.y));
#else /* !FLIP_TEXTURE_Y */
OUT.UV = IN.UV.xy;
#endif /* !FLIP_TEXTURE_Y */
OUT.WorldView = normalize(ViewIXf[3].xyz - Pw.xyz);
OUT.HPosition = mul(Po,WvpXf);
return OUT;
}
/********* pixel shaders ********/
void metal_shared(vertexOutput IN,
uniform float Kd,
uniform float SpecExpon,
uniform float Kr,
uniform samplerCUBE EnvSampler,
float3 LightColor,
uniform float3 AmbiColor,
out float3 DiffuseContrib,
out float3 SpecularContrib)
{
float3 Ln = normalize(IN.LightVec.xyz);
float3 Nn = normalize(IN.WorldNormal);
float3 Vn = normalize(IN.WorldView);
float3 Hn = normalize(Vn + Ln);
float4 litV = lit(dot(Ln,Nn),dot(Hn,Nn),SpecExpon);
DiffuseContrib = litV.y * Kd * LightColor + AmbiColor;
SpecularContrib = litV.z * LightColor;
float3 reflVect = -reflect(Vn,Nn);
float3 ReflectionContrib = Kr * texCUBE(EnvSampler,reflVect).rgb;
SpecularContrib += ReflectionContrib;
}
float4 metalPS(vertexOutput IN,
uniform float3 SurfaceColor,
uniform float Kd,
uniform float SpecExpon,
uniform float Kr,
uniform samplerCUBE EnvSampler,
uniform float3 LampColor,
uniform float3 AmbiColor
) : COLOR {
float3 diffContrib;
float3 specContrib;
metal_shared(IN,Kd,SpecExpon,Kr,
EnvSampler,LampColor,AmbiColor,
diffContrib,specContrib);
float3 result = SurfaceColor * (specContrib + diffContrib);
return float4(result,1);
}
float4 metalPS_t(vertexOutput IN,
uniform float3 SurfaceColor,
uniform sampler2D ColorSampler,
uniform float Kd,
uniform float SpecExpon,
uniform float Kr,
uniform samplerCUBE EnvSampler,
uniform float3 LampColor,
uniform float3 AmbiColor
) : COLOR {
float3 diffContrib;
float3 specContrib;
metal_shared(IN,Kd,SpecExpon,Kr,
EnvSampler,LampColor,AmbiColor,
diffContrib,specContrib);
float3 map = tex2D(ColorSampler,IN.UV).xyz;
float3 result = SurfaceColor * map * (specContrib + diffContrib);
return float4(result,1);
}
float4 metalQPS(vertexOutput IN,
uniform float3 SurfaceColor,
uniform float Kd,
uniform float SpecExpon,
uniform float Kr,
uniform samplerCUBE EnvSampler,
uniform float3 LampColor,
uniform float LampIntensity,
uniform float3 AmbiColor
) : COLOR {
float3 diffContrib;
float3 specContrib;
float3 Cl = (LampIntensity/dot(IN.LightVec.xyz,IN.LightVec.xyz)) * LampColor;
metal_shared(IN,Kd,SpecExpon,Kr,
EnvSampler,Cl,AmbiColor,
diffContrib,specContrib);
float3 result = SurfaceColor * (specContrib + diffContrib);
return float4(result,1); }
float4 metalQPS_t(vertexOutput IN,
uniform float3 SurfaceColor,
uniform sampler2D ColorSampler,
uniform float Kd,
uniform float SpecExpon,
uniform float Kr,
uniform samplerCUBE EnvSampler,
uniform float3 LampColor,
uniform float LampIntensity,
uniform float3 AmbiColor
) : COLOR {
float3 diffContrib;
float3 specContrib;
float3 Cl = (LampIntensity/dot(IN.LightVec.xyz,IN.LightVec.xyz)) * LampColor;
metal_shared(IN,Kd,SpecExpon,Kr,
EnvSampler,Cl,AmbiColor,
diffContrib,specContrib);
float3 map = tex2D(ColorSampler,IN.UV).xyz;
float3 result = SurfaceColor * map * (diffContrib+specContrib);
return float4(result,1); }
/// TECHNIQUES ////////////////////////
#if DIRECT3D_VERSION >= 0xa00
//
// Standard DirectX10 Material State Blocks
//
RasterizerState DisableCulling { CullMode = NONE; };
DepthStencilState DepthEnabling { DepthEnable = TRUE; };
DepthStencilState DepthDisabling {
DepthEnable = FALSE;
DepthWriteMask = ZERO; };
BlendState DisableBlend { BlendEnable[0] = FALSE; };
technique10 Simple10 <
string Script = "Pass=p0;";
> {
pass p0 <
string Script = "Draw=geometry;";
> {
SetVertexShader( CompileShader( vs_4_0, std_dp_VS(gWorldITXf,gWorldXf,
gViewIXf,gWvpXf,
gLamp0DirPos) ) );
SetGeometryShader( NULL );
SetPixelShader( CompileShader( ps_4_0, metalPS(gSurfaceColor,
gKd,gSpecExpon,gKr,
gEnvSampler,
gLamp0Color,gAmbiColor) ) );
SetRasterizerState(DisableCulling);
SetDepthStencilState(DepthEnabling, 0);
SetBlendState(DisableBlend, float4( 0.0f, 0.0f, 0.0f, 0.0f ), 0xFFFFFFFF); }}
#endif /* DIRECT3D_VERSION >= 0xa00 */
technique Simple <
string Script = "Pass=p0;";
> {pass p0 <
string Script = "Draw=geometry;";
> {
VertexShader = compile vs_3_0 std_dp_VS(gWorldITXf,gWorldXf,
gViewIXf,gWvpXf,
gLamp0DirPos);
ZEnable = true;
ZWriteEnable = true;
ZFunc = LessEqual;
AlphaBlendEnable = false;
CullMode = None;
PixelShader = compile ps_3_0 metalPS(gSurfaceColor,
gKd,gSpecExpon,gKr,
gEnvSampler,
gLamp0Color,gAmbiColor);
}
}
#if DIRECT3D_VERSION >= 0xa00
technique10 Textured10 <
string Script = "Pass=p0;";
> { pass p0 <
string Script = "Draw=geometry;";
> {
SetVertexShader( CompileShader( vs_4_0, std_dp_VS(gWorldITXf,gWorldXf,
gViewIXf,gWvpXf,
gLamp0DirPos) ) );
SetGeometryShader( NULL );
SetPixelShader( CompileShader( ps_4_0, metalPS_t(gSurfaceColor,gColorSampler,
gKd,gSpecExpon,gKr,
gEnvSampler,
gLamp0Color,gAmbiColor) ) );
SetRasterizerState(DisableCulling);
SetDepthStencilState(DepthEnabling, 0);
SetBlendState(DisableBlend, float4( 0.0f, 0.0f, 0.0f, 0.0f ), 0xFFFFFFFF); }}
#endif /* DIRECT3D_VERSION >= 0xa00 */
technique Textured <
string Script = "Pass=p0;";
> {
pass p0 <
string Script = "Draw=geometry;";
> {
VertexShader = compile vs_3_0 std_dp_VS(gWorldITXf,gWorldXf,
gViewIXf,gWvpXf,
gLamp0DirPos);
ZEnable = true;
ZWriteEnable = true;
ZFunc = LessEqual;
AlphaBlendEnable = false;
CullMode = None;
PixelShader = compile ps_3_0 metalPS_t(gSurfaceColor,gColorSampler,
gKd,gSpecExpon,gKr,
gEnvSampler,
gLamp0Color,gAmbiColor); }}
// pixel shaded, quadratic falloff
#if DIRECT3D_VERSION >= 0xa00
technique10 SimpleFalloff10 <
string Script = "Pass=p0;";
> { pass p0 <
string Script = "Draw=geometry;";
> {
SetVertexShader( CompileShader( vs_4_0, std_dp_VS(gWorldITXf,gWorldXf,
gViewIXf,gWvpXf,
gLamp0DirPos) ) );
SetGeometryShader( NULL );
SetPixelShader( CompileShader( ps_4_0, metalQPS(gSurfaceColor,
gKd,gSpecExpon,gKr,
gEnvSampler,
gLamp0Color,gLamp0Intensity,
gAmbiColor) ) );
SetRasterizerState(DisableCulling);
SetDepthStencilState(DepthEnabling, 0);
SetBlendState(DisableBlend, float4( 0.0f, 0.0f, 0.0f, 0.0f ), 0xFFFFFFFF);
}
}
#endif /* DIRECT3D_VERSION >= 0xa00 */
technique SimpleFalloff <
string Script = "Pass=p0;";
> {
pass p0 <
string Script = "Draw=geometry;";
> {
VertexShader = compile vs_3_0 std_dp_VS(gWorldITXf,gWorldXf,
gViewIXf,gWvpXf,
gLamp0DirPos);
ZEnable = true;
ZWriteEnable = true;
ZFunc = LessEqual;
AlphaBlendEnable = false;
CullMode = None;
PixelShader = compile ps_3_0 metalQPS(gSurfaceColor,
gKd,gSpecExpon,gKr,
gEnvSampler,
gLamp0Color,gLamp0Intensity,
gAmbiColor); }}
#if DIRECT3D_VERSION >= 0xa00
technique10 TexturedFalloff10 <
string Script = "Pass=p0;";
> {
pass p0 <
string Script = "Draw=geometry;";
> {
SetVertexShader( CompileShader( vs_4_0, std_dp_VS(gWorldITXf,gWorldXf,
gViewIXf,gWvpXf,
gLamp0DirPos) ) );
SetGeometryShader( NULL );
SetPixelShader( CompileShader( ps_4_0, metalQPS_t(gSurfaceColor,gColorSampler,
gKd,gSpecExpon,gKr,
gEnvSampler,
gLamp0Color,gLamp0Intensity,
gAmbiColor) ) );
SetRasterizerState(DisableCulling);
SetDepthStencilState(DepthEnabling, 0);
SetBlendState(DisableBlend, float4( 0.0f, 0.0f, 0.0f, 0.0f ), 0xFFFFFFFF); }}
#endif /* DIRECT3D_VERSION >= 0xa00 */
technique TexturedFalloff <
string Script = "Pass=p0;";
> {pass p0 <
string Script = "Draw=geometry;";
> {
VertexShader = compile vs_3_0 std_dp_VS(gWorldITXf,gWorldXf,
gViewIXf,gWvpXf,
gLamp0DirPos);
ZEnable = true;
ZWriteEnable = true;
ZFunc = LessEqual;
AlphaBlendEnable = false;
CullMode = None;
PixelShader = compile ps_3_0 metalQPS_t(gSurfaceColor,gColorSampler,
gKd,gSpecExpon,gKr,
gEnvSampler,
gLamp0Color,gLamp0Intensity,
gAmbiColor);
}
}
