To implement the Visitor pattern, use the following:

Visitor – The abstract class or interface that defines a visit method for each of the ConcreteElement classes.

ConcreteVisitor – Each concrete visitor class represents a specific operation to be performed for the system. It implements all the methods defined in Visitor for a specific operation or algorithm.

Element – An abstract class or interface that represents the objects upon which the Visitor operates. At a minimum, it defines an accept method that receives a Visitor as an argument.

ConcreteElement – A concrete element is a specific entity in the system. It implements the accept method defined in Element, calling the appropriate visit method defined in Visitor.

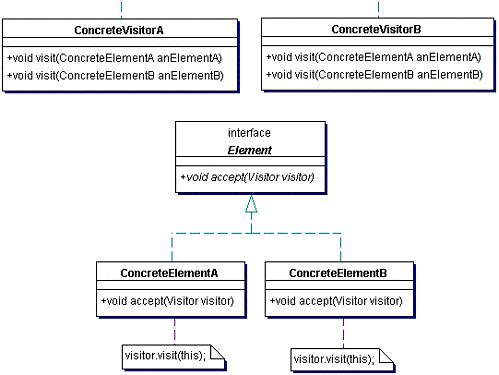

One issue to watch for when implementing the Visitor pattern involves overloaded methods. The pattern uses overloaded methods for the visit method. Figure 2.15 shows that the Visitor interface has two visit methods, each taking a different argument. These are two completely different methods from the language point of view.

Although the implementation of the accept method in each ConcreteElement class is very similar (even completely the

same), you cannot put that operation in a superclass. Doing so results in the visit method being called with the supertype as argument, even though the actual type of the instance may be a specific ConcreteElement.

Benefits and Drawbacks

Because of its structure, the Visitor pattern makes adding behavior to a system very easy. When you initially implement the pattern, you develop a support framework for any other Visitor action you might want to perform in the future. To add new functionality, simply create a new class that implements the Visitor interface and write new functional code.

Visitors are useful because they allow you to centralize functional code for an operation. Apart from making the code easier to extend or modify in the long term, this approach makes maintaining state straightforward. The same Visitor object is normally used to visit every Element in a structure, so it provides a central location to hold data being collected, or to store intermediate results.

The downside of the pattern is that there is very little flexibility in the Element class chain. Any addition or modification to the Element class hierarchy has a good chance of triggering a rewrite of the Visitor code structure. Any additional class requires a new method to be defined in the Visitor interface and each ConcreteVisitor has to provide an implementation for that method.

In addition, the pattern breaks, or at least severely bends, the object-oriented principle of code encapsulation. The Visitor pattern takes code that applies to an object out of the object’s class and moving it to another location.
