Chapter 15 C++ Mapping for Type any

15.1 Chapter Overview

This chapter covers the C++ mapping for the IDL type any. Section 15.2 presents the basic ideas behind this universal container type, and Section 15.3 shows how any maps to C++ for the different IDL data types.

To store its data, type any relies on a run-time description known as a type code. Type codes are covered in detail in Chapter 16. In addition, CORBA offers an interface that allows dynamic composition and decomposition of any values at run time without requiring compile-time knowledge of the IDL. This interface, called DynAny, is covered in Chapter 17.

15.2 Introduction

The IDL type any provides a universal type that can hold a value of arbitrary IDL type. Type any therefore allows you to send and receive values whose types are not fixed at compile time. This capability is useful in a variety of situations. For example, the CORBA Event Service (see Chapter 20) must be able to transport values whose IDL types are unknown to the service. Type any offers a solution to this problem. Events are simply values of type any, and the Event Service acts as a transport for these values without requiring compile-time knowledge of the actual types contained in them.

Type any is often compared to a void * in C. Like a pointer to void, an any value can denote a datum of any type. However, there is an important difference: whereas a void * denotes a completely untyped value that can be interpreted only with advance knowledge of its type, values of type any maintain type safety. For example, if the sender places a string value into an any, the receiver cannot extract the string as a value of the wrong type. Attempts to treat the contents of an any as the wrong type cause a run-time error.

Internally, a value of type any consists of a pair of values, as shown in Figure 15.1. One member of the pair is the actual value contained inside the any, and the other member of the pair is the type code. The type code (of type CORBA::TypeCode) is a description of the value's type. The type description is used to enforce type safety when the receiver of an any extracts the value. Extraction of the value succeeds only if the receiver extracts the value as a type that matches the information in the type code. In addition, the type code inside an any provides the ORB run time at the receiving end with the information required to correctly unmarshal the value off the wire.

575

IT-SC book: Advanced CORBA® Programming with C++

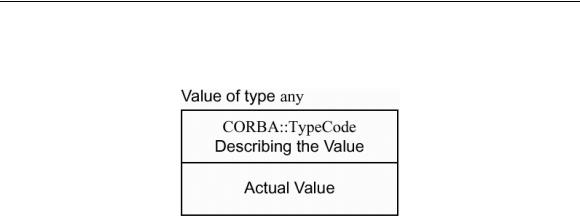

Figure 15.1 Structure of a value of type any.

Type codes not only serve to enforce type safety of any values but also provide an introspection capability. The receiver of an any value can access the type code to find out what type of value is contained in the any. This capability is useful because it makes any values stand-alone data items: the receiver of an any can always interpret the value inside the any without requiring additional contextual information. We discuss the details of type codes in Chapter 16.

Values of type any are useful whenever you want to provide IDL interfaces that are generic. For example, the following interface provides a generic facility to store values of arbitrary type:

interface ValueStore {

This interface maintains a map of name—value pairs. The put operation adds a value to the map, and the get operation returns the named value. If the caller passes a string that does not map to a value, get returns a special any value that contains no value (with a type code that indicates that no value is present). Under normal circumstances, you would not create an interface in this way. Instead, you would define operations that are specific to each IDL type. However, if you need a generic way to store and retrieve values of IDL types that cannot be known at compile time, type any provides the means to do so.

Another frequent use of type any is to simulate variable-length parameter lists for IDL operations. IDL does not have the concept of variable-length parameter lists, but you can use type any to achieve the same effect:

struct NamedValue { string name; any value;

};

typedef sequence<NamedValue> ParamList;

interface foo {

void op(in ParamList pl);

};

576

IT-SC book: Advanced CORBA® Programming with C++

With this approach, the operation op can accept any number of parameters of arbitrary type (including none). This technique is very similar to using the C++ stdarg facility but has an added advantage: because extraction from an any value is type-safe, the implementation of op cannot accidentally misinterpret a parameter as the wrong type. If the caller sends a parameter that op does not understand, op can raise an exception at run time. This is considerably safer than using C++ stdarg parameters, which require you to pass a parameter that describes how the remaining parameters must be interpreted. For example, if you pass a format string to printf that does not match the actual parameters in type and number, printf has no way to protect itself against the mismatch, and its behavior at run time is undefined.

Before we discuss the details of the mapping for type any, a few words of caution are in order: by deciding to use any instead of statically typed interfaces, you are making a trade-off. Specifically, you are trading static compile-time type safety for dynamic runtime type safety. This means that type mismatches are no longer detected at compile time. Instead, you are relying on the thoroughness of your own error-checking code at run time to catch type mismatches. In addition, generic types, such as any or variable-length parameter lists, are harder to use than statically typed interfaces. You must do a lot of work at run time that requires writing explicit code. For static interfaces, that work is done for you by the code generated by the IDL compiler. This means that you should carefully consider whether you really need to use generic interfaces.

Often, there is a temptation to use type any when another solution would be more appropriate. For example, consider an interface in which we have semantically identical operations that accept parameters of different types:

interface ValueStore {

// etc...

};

Here, we have a number of operations that accept values of different types. Because IDL does not permit overloading of operations, we end up with operation names such as put_long and put_string. You may be tempted to write the interface this way instead:

interface ValueStore {

This solves the problem by using a parameter of type any. This second version may well be the appropriate one, but it also may be too generic. If ValueStore needs to deal

577

IT-SC book: Advanced CORBA® Programming with C++

only with a fixed set of types that is known in advance and does not change over time, the following may be a better alternative:

enum ValueKind { LONG_VAL, STRING_VAL, MYSTRUCT_VAL /* etc. */ };

union Value switch (ValueKind) { case LONG_VAL:

At first glance, this approach does not look very attractive. Instead of using a simple three-line interface, you must add a fairly complex union definition. However, the union version has the advantage that the put operation accepts only a value that has one of the expected types because we have defined the union so that it must contain a value of known type. This approach is slightly more type-safe than the approach using type any because an any can contain absolutely any IDL type and not just those expected by put.

As always, finding the best approach requires knowledge of the application and the ways clients will likely want to use the IDL. You must use your own judgment to find an appropriate compromise between type safety and generality.

15.3 Type any C++ Mapping

The IDL type any maps to the C++ class Any[1] in the CORBA namespace. The class contains a large number of member functions, so we show only an outline of it for now and present the various member functions in detail as we discuss insertion and extraction of the various types.

[1] Note that the IDL name is any, whereas the C++ name is Any. For the remainder of this book, we use any to mean the IDL type and use Any to mean the C++ type.

class Any { public:

// Constructors, destructor, and assignment

578

IT-SC book: Advanced CORBA® Programming with C++

~Any()

Any & operator=(const Any &);

//Insertion operators for boolean, char,

//wide char, octet, bounded strings, and fixed. void operator<=(from_boolean);

void operator<=(from_char);

void operator<=(from_octet);

//etc...

//Extraction operators for boolean, char,

//wide char, octet, bounded strings, and fixed. Boolean operator>>=(to_boolean) const;

Boolean operator>>=(to_char) const; Boolean operator>>=(to_octet) const;

//etc...

//Widening extraction for object references Boolean operator>>=(to_object) const;

//TypeCode accessor and modifier

};

//Insertion operators for simple types void operator< <=(CORBA::Any &, Short); void operator< <=(CORBA::Any &, UShort); void operator< <=(CORBA::Any &, Long);

//etc...

//Extraction operators for simple types

Boolean operator>>=(const CORBA::Any &, Short &) const; Boolean operator>>=(const CORBA::Any &, UShort &) const; Boolean operator>>=(const CORBA::Any &, Long &) const; // etc...

15.3.1 Construction, Destruction, and Assignment

Values of type Any have a default constructor. A default-constructed Any contains no value and contains a tk_null type code to indicate "no value". Obviously, you cannot extract a value from a default-constructed Any. However, it is safe to send an Any not containing a value across an IDL interface. By looking at the Any's type code (see Chapter 16), the receiver of the Any can test whether or not it actually contains a value.

579

IT-SC book: Advanced CORBA® Programming with C++

As usual, the copy constructor and assignment operator make deep copies, and the destructor releases all memory that may currently be held by the value.

Note that there is also a special constructor that accepts a type code, a void pointer, and a release flag. We strongly recommend that you do not use this constructor at all; it is fraught with danger because it bypasses all type checking. The same comments apply to the value and replace member functions, which are completely type-unsafe. The reason for this lack of type safety is that the C++ mapping specification makes no statement as to the binary representation of values inside an Any. It follows that you cannot interpret the memory pointed to by the void * because you have no idea of the binary layout of the data.

The low-level constructor and member functions of type Any are part of the C++ mapping only for ORBs that implement binary-compatible C and C++ mappings. In fact, portable use of these functions is impossible, so it is best to ignore them. We do not discuss them further in this book. (A last-minute update to the C++ mapping for CORBA 2.3 deprecated all member functions involving void *, so future ORB versions will not support them.)

The overloaded type member functions provide an accessor and a modifier for the type code contained in an Any. We delay discussion of the type member functions until Chapter 16, which discusses type codes.

15.3.2 Basic Types

The C++ mapping provides overloaded operators to insert (<<=) and to extract (>>=) basic types.

Basic Type Insertion

To insert a basic IDL type into an Any, you use the overloaded <= insertion operator.[2]

[2] Developers often ask why < <= was chosen for insertion instead of < <. The answer is that <<= is more appropriate because it has the same low precedence as an ordinary assignment operator, whereas the precedence of << is too high for convenient use. Also, << suggests stream insertion, whereas <= suggests assignment.

Immediately after construction, a contains no value. The first insertion statement places the value 99 into a. The second insertion statement overwrites the value 99 with the string "Hello", making a deep copy. The third insertion statement deallocates the string "Hello" again and replaces it with the Double value 3.14.

580

IT-SC book: Advanced CORBA® Programming with C++

Inserting a value into an Any does two things: it stores a copy of the value in the Any, and it sets the type code inside the Any to that of the inserted value. This means that the casts in the preceding code are necessary. For example, the following insertion is, strictly speaking, non-portable:

a <<= 99; // Dubious!!!

This insertion does not specify the type of the value to be inserted. Instead, it depends on the C++ type of the literal 99. By definition, the literal 99 has the C++ type int. However, the size of int is implementation-defined. Depending on the architecture, a C++ int may be 16, 32, or 64 bits in size, and this means that the actual value that will be inserted could be of IDL type short, long, or long long. Similar arguments apply to insertion of floating-point constants. To be safe when inserting numeric literals, you should either use a cast or assign the literal to a variable of the correct type first and then insert the variable:

Another point to keep in mind is that insertion of a string into an Any makes a deep copy

(unless you explicitly request a consuming insertion—see Section 15.3.5). This means that the following two insertions are equivalent (both insert a copy of the string):

Note that this differs from assignment of a string literal to a String_var, in which a deep copy is made if the right-hand side is a const char *, and a shallow copy is made otherwise. The following code leaks memory and must not be used:

a <<= CORBA::string_dup("Hello"); // Memory leak!

This is wrong because the insertion operator already makes a copy, so the copy created by the call to string_dup is never deallocated.

Whenever you insert a new value into an Any that already stores a value, the insertion correctly deallocates the previous value. For example:

The C++ mapping provides overloaded <= insertion operators for the following IDL types: short, unsigned short, long, unsigned long, float, double,

581

IT-SC book: Advanced CORBA® Programming with C++

unbounded string and wstring, and any (yes, you can insert an Any into another Any). If your ORB supports the newly added IDL types long long, unsigned long long, and long double, insertion operators for these types are also provided. Other types, such as char, wchar, bounded strings and wide strings, fixed, and certain user-defined types, use other methods for insertion. We cover them in the remainder of this chapter.

Basic Type Extraction

To extract basic types, the C++ mapping provides overloaded >>= operators. As you saw in the class introduction on page 667, the extraction operators expect a reference to a value as the right-hand argument and return a Boolean. When you apply an extraction operator to a value of type Any, the extraction operator checks whether the type code inside the Any matches the type of its right-hand operand. If it matches, the operator extracts the value and returns true. If the value inside the Any does not match the righthand operand type, the extraction fails and the operator returns false.

The following code fragment tests that extraction succeeds as it should and uses the assert macro to ensure that the extracted value matches the value that was originally inserted:

If you try to extract a value that does not match the type code in the Any, the extraction operator returns false:

CORBA::Any a;

a <<= (CORBA::Short)5;

The code tests that the extraction operator does indeed return false as expected. Note that extraction from an Any requires a precise match of type. As illustrated by this example, there is no concept of value promotion. For example, you cannot extract a Short value into a Long variable even though the value would fit.

15.3.3 Types Not Distinguishable for Overloading

582

IT-SC book: Advanced CORBA® Programming with C++

The C++ mapping permits different IDL types to be mapped onto the same C++ type. Specifically, IDL char, boolean, and octet can all map to the same C++ character type. In addition, IDL wchar can map either to C++ wchar_t or to one of the C++ integer types. This means that the mapping cannot overload the <= operator for these types because, at the C++ level, they may be the same single type.

Insertion and Extraction of boolean, octet, and char

In cases when more than one IDL type can map to the same C++ type, you insert a value into an Any using a helper type. The purpose of the helper type is to correctly set the type code. Here is an example:

a <<= CORBA::Any::from_boolean(b); a <<= CORBA::Any::from_char(c);

a <<= CORBA::Any::from_octet(o);

As you can see from this example, you must use the CORBA::Any::from_type helpers to insert these values. The example also shows that if you forget to use the helper types, you will get a compile-time error. You must be careful, though, to use the correct helper type:

CORBA::Any a; CORBA::Char c = 'x';

a <<= CORBA::Any::from_boolean(c); // Oops, wrong helper!

This code compiles and runs on many ORBs, but it is wrong because it inserts the value of the character 'x' into the Any while setting the type code to indicate a Boolean.

To extract one of these values again, you must use the corresponding to_type helper:

CORBA::Any a;

CORBA::Boolean b;

CORBA::Char c;

CORBA::Octet o;

if (a >>= CORBA::Any::to_boolean(b)) {

//It contained a boolean, use b...

}else if (a >>= CORBA::Any::to_char(c)) {

//It contained a char, use c...

}else if (a >>= CORBA::Any::to_octet(o)) {

//It contained an octet , use o...

583

IT-SC book: Advanced CORBA® Programming with C++

}else {

//There is something else in the Any

This code example shows that you can use the return value of the extraction operator to test whether extraction succeeded. It also illustrates that if you forget to use a helper type and try to extract directly, you will get a compile-time error.

As with insertion, you must be careful to use the correct helper:

This code may compile on your ORB but has undefined behavior because the wrong helper is used here.

Insertion and Extraction of Wide Characters

To insert a wide character into an Any, you also must use a helper type:

CORBA::Any a; CORBA::WChar wc = L'x';

a <<= CORBA::Any::from_wchar(wc);

You must use the from_wchar helper type to correctly insert wide characters. Depending on the environment, the following code may or may not compile, but, if it does compile, it has undefined behavior:

In a non-standard C++ environment, in which wchar_t is an alias for an integer type, this code will compile but will incorrectly set the type code to indicate an integer type. In a standard C++ environment, the insertion may do the right thing, or it may incorrectly set the type code to an integer type or cause a compilation error. (Unfortunately, the C++ mapping cannot guarantee a compile-time error for this mistake because of the need to support non-standard compilers.)

Extraction is similar to insertion:

CORBA::Any a = ...;

CORBA::WChar wc;

584

IT-SC book: Advanced CORBA® Programming with C++

if (a >>= CORBA::Any::to_wchar(wc)) { // OK, we have a wide character

}

As with insertion, you must use the to_wchar helper type. Otherwise, the behavior is undefined.

15.3.4 Insertion and Extraction of Unbounded Strings

You have seen that unbounded strings are inserted using the normal insertion operator:

The <<= operator is overloaded for const char * and always makes a deep copy. If you insert a string in this way, the type code inside the Any is set to indicate an unbounded string.

Extraction of strings uses the overloaded >>= operator:

CORBA::Any a;

a <<= "Hello World"; // Insert string const char * msg;

assert(ok);

cout << "Message was: " << msg << endl;

In this example we are testing the return value of the extraction with an assertion because we know that it must succeed. The overloaded >>= operator succeeds only if the Any contains an unbounded string.

The main question for string extraction is this: who owns the memory for the string after the extraction? The answer is that the Any retains ownership of the string, so the returned pointer points at memory internal to the Any. This means that you must not deallocate the extracted string, and you must treat the extracted string as read-only. The following code contains two mistakes:

CORBA::Any a; a <<= "Hello";

This code modifies the string via the returned pointer, and that is not portable.[3] In addition, the call to string_free is certain to cause problems because the Any still

585

IT-SC book: Advanced CORBA® Programming with C++

owns the string and will deallocate it a second time when it goes out of scope, possibly causing a core dump.

[3] The C++ mapping requires you to treat the returned string as read-only to avoid restricting ORB implementations unnecessarily.

If you want to modify an extracted string, you must make a copy and modify the copy. Fortunately, a String_var will automatically make a deep copy for you:

CORBA::Any a; a <<= "Hello";

This code illustrates how to safely extract and modify strings. Note that msg is a pointer to constant data. This makes it impossible to modify the contents of the string via the pointer by mistake. You should always extract strings by constant pointer—it protects you from your own mistakes.

To get a modifiable copy of the string, we use the extracted pointer to initialize a String_var, which makes a deep copy. The subsequent assignment modifies the copy, and the String_var, when it goes out scope, eventually deallocates the copy again.

Note that direct extraction into a String_var leads to disaster:

This causes problems with double deallocation because both the Any and the String_var will deallocate the same string.

15.3.5 Insertion and Extraction of Bounded Strings

To insert and extract bounded strings, again you must use helper types. The reason is that both bounded and unbounded strings map to char *, so operator overloading cannot be used to distinguish between them.

Insertion of Bounded Strings

Extraction of bounded strings uses the from_string helper type:

class Any {

586

IT-SC book: Advanced CORBA® Programming with C++

public:

// ...

struct from_string {

from_string(char * s, ULong b, Boolean nocopy = 0);

// ...

};

// ...

void operator<=(from_string);

// ...

};

To insert a bounded string into an Any, you must supply the string together with its bound:

CORBA::Any a;

a <= CORBA::Any::from_string("Hello", 20);

This code inserts the string "Hello" into the Any with a bound of 20. Note that the bound need not be the same as the length of the string. The bound indicates the maximum length of the string, whereas the actual length is the length of the passed string argument (the length of "Hello" is 5). If you pass a string that is longer than the bound, the behavior is undefined:

CORBA::Any a;

a <<= CORBA::Any::from_string("Hello", 3); // Undefined!

As usual, the bound does not include the terminating NUL byte, so a bound value of 5 is OK for the string "Hello".

A bound value of zero indicates that the string is unbounded. The following two statements are equivalent:

Both statements insert "Hello" as an unbounded string.

By default, from_string makes a deep copy of its argument. You can also instruct the Any not to make a copy and instead to take ownership:

CORBA::Any a;

char * msg = CORBA::string_dup("Hello");

a <<= CORBA::Any::from_string(msg, 5, 1); // Consumes msg

By setting the third parameter of from_string to a non-zero value, you can suppress the copying insertion. Instead, the Any simply stores the passed pointer and takes ownership. When the Any goes out of scope, it calls string_free to deallocate the

587

IT-SC book: Advanced CORBA® Programming with C++

string again. This behavior is useful if you want to directly insert the return value from an IDL operation into an Any:

Foo_var fv = ...; // Get object reference CORBA::Any a;

a <<= CORBA::Any::from_string(fv->get_string(), 0, 1);

Here, the get_string call returns a string that is directly inserted into an Any. The second argument to from_string is zero, and that means the string is inserted as an unbounded string. The third argument is 1, and that instructs the Any to take responsibility for deallocation.

Extraction of Bounded Strings

Extraction of bounded strings uses the to_string helper type:

CORBA::Any a;

a <<= CORBA::Any::from_string("Hello", 10); char * msg;

a >>= CORBA::Any::to_string(msg, 10); cout << "Got message: " << msg << endl;

As with unbounded strings, the Any retains ownership of the extracted string, and you must neither modify nor deallocate the string. Extraction of strings is always by pointer— there is no copying version of string extraction.

The bound during extraction must match the bound stored in the Any's type code. You can neither extract a bounded string with a different bound nor pretend that it is an unbounded string:

CORBA::Any a;

a <<= CORBA::Any::from_string("Hello", 10);

15.3.6 Insertion and Extraction of Wide Strings

Insertion and extraction of wide strings is analogous to insertion and extraction of normal strings. For unbounded wide strings, you insert and extract using the overloaded <<= and >>= operators:

CORBA::Any a;

a <<= L"Hello World"; // Insert wide string const CORBA::WChar * msg;

a >>= msg;

588

IT-SC book: Advanced CORBA® Programming with C++

cout < "Message was: " < msg < endl;

The memory management rules are the same as for normal strings: insertion always makes a deep copy, and extraction returns a pointer that points at read-only memory owned by the Any.

To insert and extract bounded wide strings, use the from_wstring and to_wstring helper types:

CORBA::Any a;

a <<= CORBA::Any::from_wstring(L"Hello", 10); CORBA::WChar * msg;

a >>= CORBA::Any::to_wstring(msg, 10); cout << "Got message: " << msg << endl;

As with normal strings, you can pass a non-zero third argument to the from_wstring constructor to instruct the Any to take ownership for insertion.

15.3.7 Insertion and Extraction of Fixed-Point Types

Fixed-point types are inserted and extracted using from_fixed and to_fixed helper types. Here is an example that inserts a Fixed value into an Any:

CORBA::Fixed f = "199.87D"; CORBA::Any a1;

a1 <<= CORBA::Any::from_fixed(f, 5, 2); // Insert as fixed<5,2> CORBA::Any a2;

a2 <= CORBA::Any::from_fixed(f, 10, 3); // Insert as fixed<10, 3>

Note that you must specify the digits and scale of the value because the C++ type Fixed is a generic type whose digits and scale vary at run time.

To extract the value again, you also need to specify digits and scale:

CORBA::Any a = ...; CORBA::Fixed f;

if (a >>= CORBA::Any::to_fixed(f, 5, 2)) {

//It's a fixed<5, 2>

}else if (a >>= CORBA::Any::to_fixed(f, 10, 3)) {

//It's a fixed<10, 3>

}else {

//It's some other type

}

The specification does not state for either insertion or extraction what should happen if the value does not fit into the specified digits or if it would lose precision due to the scale being too small, so you should avoid such cases. If you need to know what digits and

589

IT-SC book: Advanced CORBA® Programming with C++

scale are used by a fixed-point value before extracting it from an Any, you can interrogate the Any's type code (see Chapter 16).

15.3.8 User-Defined Types

To insert and extract user-defined types, you must link against the code generated by the IDL compiler because it generates overloaded operators for the user-defined types in the IDL. For example, assume that the IDL contains this definition:

Given this definition, the IDL compiler generates code into the stub file to overload the <<= and >>= operators for a structure of type BtData:

This allows you to insert and extract user-defined types much as you would with built-in types. However, you must link against the generated stub code so that the necessary overloaded operators will be available to your application code.

For this chapter, we assume that you have linked the generated stubs, so the application code has compile-time knowledge of the IDL. Nevertheless, you can also insert and extract user-defined types even without compile-time knowledge of the IDL for an application. We discuss how to do this in Chapter 17, where we cover the DynAny interface.

Insertion and Extraction of Simple User-Defined Types

You insert and extract simple user-defined types, such as aliases for built-in types and enumerated types, using the overloaded operators:

590

IT-SC book: Advanced CORBA® Programming with C++

For simple types, such as enumerated types and aliases for simple built-in types, insertion and extraction is always by value, so no memory management issues arise. If the IDL uses an alias for string, such as ModelType, the normal rules for string insertion and extraction apply.

Insertion of values of a type that is aliased may not preserve the alias information in the Any's type code. For example, after a value of type TempType is inserted into an Any, the Any's type code will be set to indicate a short value and not a value of type TempType. We discuss this issue in detail in Section 15.4.

Insertion and Extraction of Structures, Unions, and Sequences

Insertion and extraction of structures, unions, and sequences also uses overloaded <<= and >= operators. The insertion operator is overloaded twice: once for insertion by reference and once for insertion by pointer. If you insert a value by reference, the insertion makes a deep copy. If you insert a value by pointer, the Any assumes ownership of the pointed-to memory. Here is an example that inserts a structure of type BtData using both copying and consuming insertion:

As with strings, consuming insertion by pointer is useful if you want to directly insert a variable-length return value from an operation into an Any.

Extraction of structures, unions, and sequences is always by pointer. As with strings, you must treat the extracted pointer as read-only and must not deallocate it because the pointer points at memory internal to the Any:

// btd_p points at read-only memory still owned by the Any.

591

IT-SC book: Advanced CORBA® Programming with C++

Never extract a user-defined value from an Any into a _var type. Doing so will cause disaster:

CORBA::Any a;

// Initialize a...

This code will eventually lead to a crash, because both the Any and the _var variable retain ownership, resulting in double deallocation of the same memory.

To maintain the read-only restriction of the extracted value, you can use the copy constructor to make a copy of the value. Then you can modify the copy:

CORBA::Any a;

// Initialize a...

Never pass a pointer extracted from an Any as an inout parameter. If you do, the caller may deallocate the value and create chaos, because the Any will deallocate the same memory a second time. Instead, make a deep copy of the extracted value on the heap, and pass it as the inout parameter in a _var variable. In that way, the appropriate memory management activities are taken care of automatically.

Insertion and Extraction of Arrays

The C++ mapping cannot use overloaded operators directly to insert and extract arrays. The reason is that C++ has a weak array concept. In particular, when an array is passed as an argument to a function, it degenerates into a pointer to the first element. This in turn means that arrays that have identical element types, but different dimensions, become indistinguishable. For example, suppose the IDL contains

typedef long arr10[10]; typedef long arr20[20];

At the C++ level, this generates two array definitions:

typedef CORBA::Long arr10[10]; typedef CORBA::Long arr20[20];

This does not cause any problem, but attempts to overload the insertion or extraction operator will not compile:

592

IT-SC book: Advanced CORBA® Programming with C++

void operator<=(CORBA::Any &, const arr10);

void operator<=(CORBA::Any &, const arr20); // Compile-time error

The two signatures become indistinguishable as far as the compiler is concerned because the array argument in both cases degenerates to long *.

To get around this, the IDL compiler generates a helper type for each IDL array type. The helper type is called array_name_forany. For example, for the preceding two array types, the generated code contains the following:

typedef CORBA::Long arr10[10]; typedef CORBA::Long arr20[20];

class arr10_forany { public:

arr10_forany(const arr10, CORBA::Boolean nocopy = 0); // ...

};

class arr20_forany { public:

arr20_forany(const arr20, CORBA::Boolean nocopy = 0);

};

void operator<=(CORBA::Any &, const arr10_forany &); void operator<=(CORBA::Any &, const arr20_forany &);

Here, the array_name_forany classes serve to provide distinct types so that the mapping can overload the insertion operator without ambiguity.

To insert an array, you must construct the appropriate helper type:

CORBA::Any a;

This code works correctly because it explicitly constructs a helper class of the appropriate type.

By default, insertion of an array makes a deep copy. To instruct an Any to take ownership of the inserted array, you set the nocopy argument of the helper constructor to a non-zero value:

CORBA::Any a;

arr10_slice * aten_p = arr10_alloc(); // Heap-allocate array

593

IT-SC book: Advanced CORBA® Programming with C++

Here, the Any a takes ownership of the passed pointer and deallocates the array with arr10_free when it goes out of scope.

As with other helper types for type Any, type safety is weakened and you must be careful to use the correct helper type. For example, the following code will result in undefined behavior:

Extraction for arrays also uses the array_name_forany helper types. Instead of explicitly calling the array_name_forany constructor, you declare a variable of the helper type and extract into that variable:

This code directly extracts into a variable of the appropriate helper type. This extraction is type-safe, and the extraction operator returns zero if the type code inside the Any does not match the helper type.

The array_name_forany helper classes also overload operator[], so you can use the helper variable to index into the array instead of having to make a copy first. Note, though, that the extracted array is still owned by the Any and must be treated as readonly. If you want to modify the elements of an extracted array, you must first make a copy of the array and modify the copy (use the generated array_name_copy function to do this).

Insertion and Extraction of Object References

The IDL compiler generates overloaded insertion and extraction operators for each interface type, so you can insert and extract object references just as you do with any

594

IT-SC book: Advanced CORBA® Programming with C++

other user-defined type. Again, you can choose between copying and consuming insertion. If you insert a _var or _ptr reference, the Any makes a deep copy (calls _duplicate). If you insert the address of a _ptr reference, the Any takes ownership and calls release when it goes out of scope:

CCS::Thermometer_ptr tp2 = ...; // Get another _ptr reference

As with other types, consuming insertion is useful for inserting the return value of an operation directly into an Any. After you have passed responsibility for releasing a reference to an Any, you must not use the inserted _ptr reference again:

CCS::TempType t = tp->temperature(); // Non-portable!

This code is non-portable because the Any may have made a copy and immediately released the original reference tp.

To extract an object reference again, simply use the overloaded extraction operator. Be aware, though, that an extracted object reference is not copied. This means that you can use the extracted _ptr reference while the Any is still in scope, and you must not release the extracted reference:

//Use tp_ex...

//No need to release tp_ex here, the Any will do that.

As with other types extracted by pointer, never extract a reference directly into a _var variable because doing so will cause both the Any and the _var variable to release the reference.

Widening Extraction of References

595

IT-SC book: Advanced CORBA® Programming with C++

Extraction of object references requires a precise type code match. For example, the following extraction will fail:

This code inserts a thermostat reference and then attempts to extract it as a reference to a thermometer, which is a base type. However, it does not work. The extraction operator returns zero because the type code inside the Any does not match the type of the extracted reference.

If you want to use widening extraction of references from an Any, you must use the to_object helper type:

therm = CCS::Thermometer::_narrow(obj); // Narrow to Thermometer

Extraction into the to_object helper type succeeds if the Any contains a reference of any type. The extracted reference is always of type Object. In addition, you must release references extracted with to_object. The preceding code does this by extracting directly into a _var reference. Note that memory management for to_object differs from that of non-widening extraction, in which the Any retains ownership of the extracted reference.[4]

[4] The memory management rules for Any were changed with CORBA 2.3. For CORBA 2.2 (and earlier) ORBs, the Any retains ownership of the extracted reference. This means that you must not release the extracted reference for CORBA 2.2 and earlier.

After you have extracted a reference as type Object from an Any, you must call the appropriate _narrow function to down-cast the reference to the required type as usual.

15.3.9 Inserting and Extracting Any

The value inside an Any can itself be an Any. For example:

CORBA::Any outer;

596

IT-SC book: Advanced CORBA® Programming with C++

There is nothing special about inserting an Any into another Any. The type code of the outer Any simply indicates that the type of the value is Any.

Extraction of type Any values is by read-only pointer as with user-defined types:

// The Any `outer' still owns the memory pointed to by `extracted'

As with all types extracted by pointer, the extracted pointer points at memory owned by the Any, so you must not deallocate the pointer.

As with other user-defined types, consuming insertion of an Any is possible by inserting a pointer:

15.3.10 Inserting and Extracting Exceptions

An Any is capable of storing an exception. This may come as a surprise to you because, as we mention in Section 4.9, exceptions are not permissible as member types or parameter types. The mapping permits exceptions to be placed into Any values because the Dynamic Skeleton Interface (DSI) requires servers to raise exceptions by inserting them into an Any.

We strongly discourage you from using type Any to transmit exceptions as if they were parameters. Although this practice is technically legal, it is bad style because operation parameters were never intended for exception passing (exceptions are error indicators and not data).

597
