4.2 Посадочные места

Графические изображения и параметры графических объектов посадочных мест представлены в Таблице 6.

Таблица 6

Название посадочного места
Графическое изображение посадочного места	Параметры графических объектов

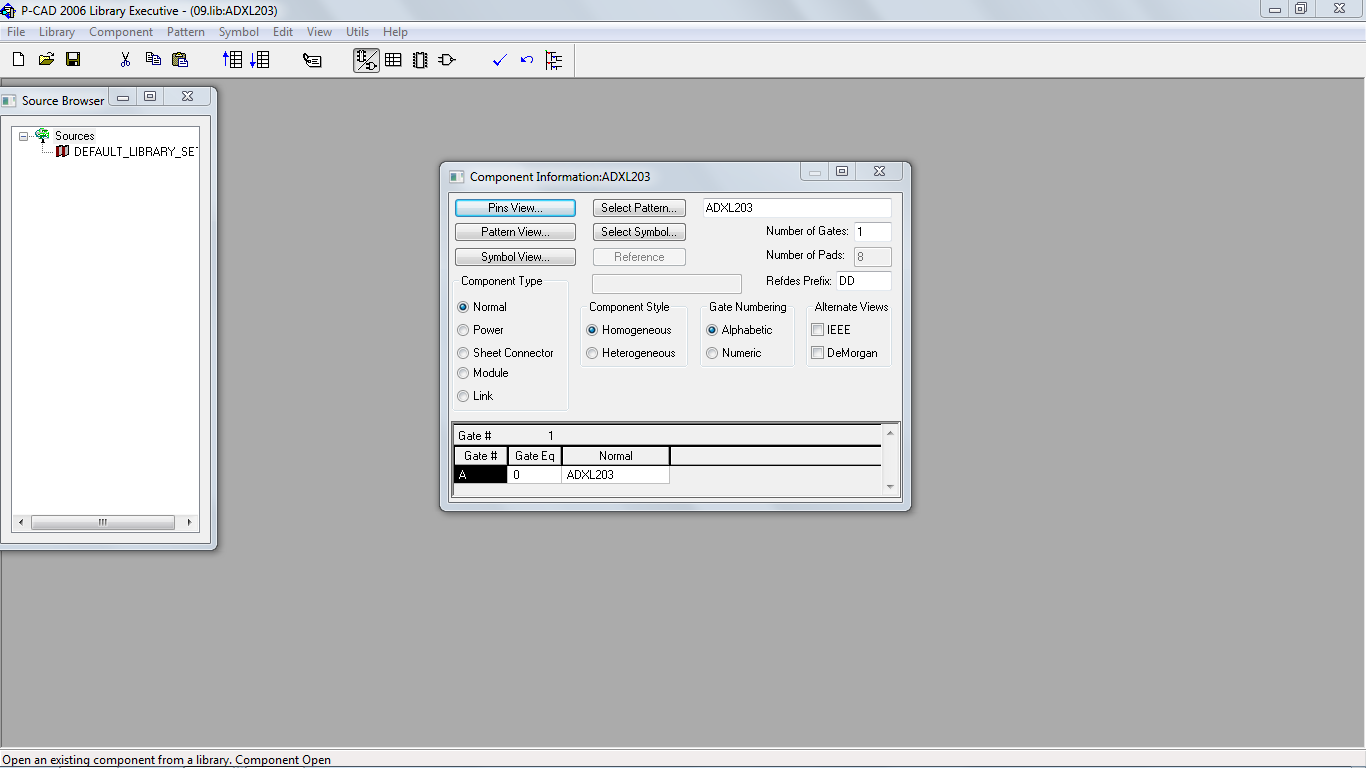

ADXL203
	Line Properties: Widh - 11.8mil Line Properties: Widh – 5.9mil Pad Properties: Pad Style – q1.6x08; Rotation - 0.0deg Atribut Properties: Visible; Text Style – Default; Rotation – 0.0deg
ADXRS150EB
	Line Properties: Widh - 11.8mil Line Properties: Widh – 5.9mil Pad Properties: Pad Style – CD_10; Rotation - 0.0deg Atribut Properties: Visible; Text Style – Default; Rotation – 0.0deg
C0805
	Line Properties: Widh - 11.8mil Line Properties: Widh – 5.9mil Pad Properties: Pad Style – SxRFx125x150_1; Rotation - 0.0deg Atribut Properties: Visible; Text Style – Default; Rotation – 0.0deg
KT15D08
	Line Properties: Widh – 5.9mil Pad Properties: Pad Style – C15D08; Rotation - 0.0deg Atribut Prope ties: Visible; Text Style – Default; Rotation – 0.0deg
PDI238X16
	Line Properties: Widh – 11.8mil Line Properties: Widh – 5.9mil Pad Properties: Pad Style – c15d08; Rotation - 0.0deg Atribut Properties: Visible; Text Style – Default; Rotation – 0.0deg

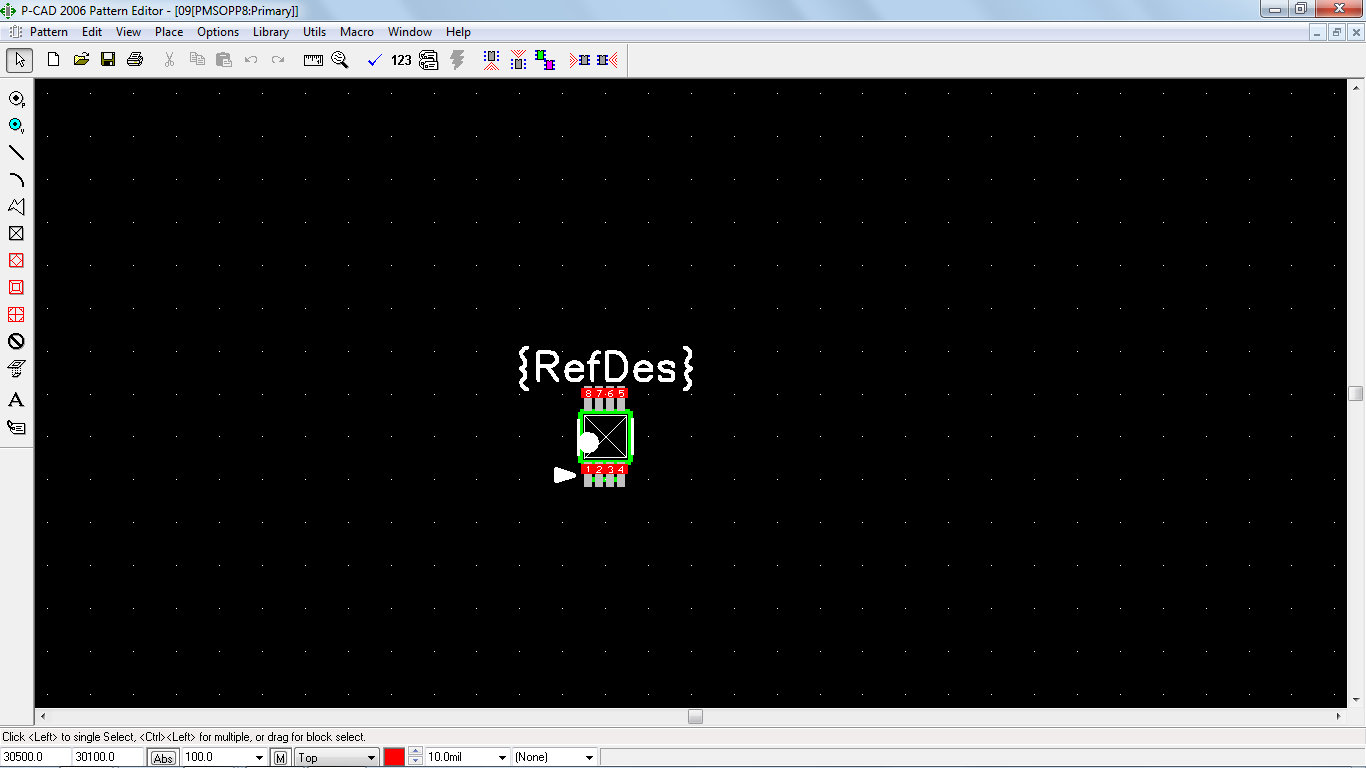

PMSOPP8
	Line Properties: Widh – 11.8mil Line Properties: Widh – 5.9mil Pad Properties: Pad Style – Q045X150; Rotation - 0.0deg Arc Properties: Radius – 19.7; Width – 11.8mil; Start Angle – 180.0deg; End Angle – 180.0deg Atribut Properties: Visible; Text Style – Default; Rotation – 0.0deg
PSOICP8
	Line Properties: Widh – 11.8mil Pad Properties: Pad Style – Q08X21; Rotation - 0.0deg Atribut Properties: Visible; Text Style – Default; Rotation – 0.0deg
R0805
	Line Properties: Widh - 11.8mil Line Properties: Widh – 5.9mil Pad Properties: Pad Style – SxRFx125x150_1; Rotation - 0.0deg Atribut Properties: Visible; Text Style – Default; Rotation – 0.0deg
TME1215S
	Line Pr operties: Widh - 11.8mil Line Properties: Widh – 5.9mil Pad Properties: Pad Style – c15d08; Rotation - 0.0deg Atribut Properties: Visible; Text Style – Default; Rotation – 0.0deg
