5 Блок-схема
Для створення програми за заданим завданням необхідною умовою є створення блок – схеми, яка допомагає більш добре уявити, які структурні частини повинна містити у собі створена програма.

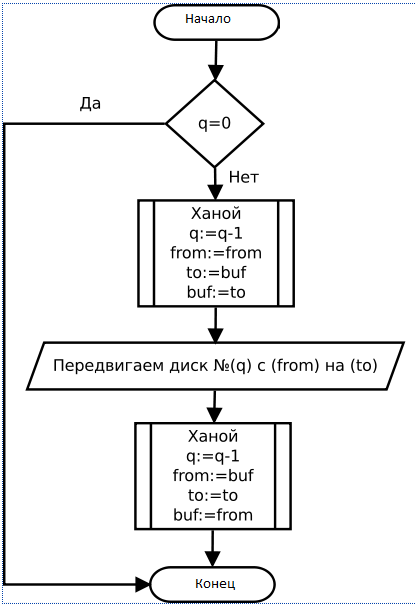

Малюнок 1 – Блок-схема програми
6 Текст програми
unit kyrsov;
interface
uses
Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
Dialogs, ExtCtrls, StdCtrls, Menus, ComCtrls, Buttons;
type
Pin = array of TPanel;
TForm1 = class(TForm)
Panel1: TPanel;
Panel2: TPanel;
Panel3: TPanel;
Panel4: TPanel;
Panel5: TPanel;
Panel6: TPanel;
Panel7: TPanel;
Edit1: TEdit;
Edit2: TEdit;
Edit3: TEdit;
Edit4: TEdit;
Edit5: TEdit;
Edit6: TEdit;
StatusBar1: TStatusBar;
Timer1: TTimer;
Label1: TLabel;
Label2: TLabel;
Label3: TLabel;
Edit7: TEdit;
UpDown1: TUpDown;
Button1: TButton;
Button2: TButton;
Label4: TLabel;
Timer2: TTimer;
procedure Game(Sen: TObject);
procedure PanelClick(Sender: TObject);
procedure Move(Pan1, Pan2: TPanel; Ed: TEdit);
procedure Hig(Pan: Pin; Tow: TPanel; Ed1, Ed2: TEdit);
procedure EndOfGame;
procedure Sel(Pan1: TObject; Pan: Pin; Ed1, Ed2, Ed3: TEdit);
procedure Pos(Panel: TPanel);
procedure FormCreate(Sender: TObject);
procedure Panel3Click(Sender: TObject);
procedure Panel4Click(Sender: TObject);
procedure Panel2Click(Sender: TObject);
procedure N2Click(Sender: TObject);
procedure Timer1Timer(Sender: TObject);
procedure N4Click(Sender: TObject);
private
{ Private declarations }
public
{ Public declarations }
end;
var
i, j, t, n: integer;
f: boolean;
p: Pin;
m, s: string;
v: TPanel;
Form1: TForm1;
implementation
{$R *.dfm}
procedure TForm1.FormCreate(Sender: TObject);
begin
Panel2.Height := UpDown1.Position * 20 + 40;
Panel3.Height := UpDown1.Position * 20 + 40;
Panel4.Height := UpDown1.Position * 20 + 40;
Panel2.Top := Panel5.Top - UpDown1.Position * 20 - 30;
Panel3.Top := Panel5.Top - UpDown1.Position * 20 - 30;
Panel4.Top := Panel5.Top - UpDown1.Position * 20 - 30;
f := False;
Panel1.Enabled := False;
Timer1.Enabled := False;
Label1.Visible := False;
Label2.Visible := False;
t := 0;
StatusBar1.Panels.Items[1].Text := 'Кол-во шагов: ' + IntToStr(t);
m := '00';
s := '00';
StatusBar1.Panels.Items[0].Text := 'Время игры: ' + m + ':' + s;
Edit1.Text := IntToStr(UpDown1.Position);
Edit2.Text := IntToStr(0);
Edit3.Text := IntToStr(0);
Edit5.Text := '';
Edit6.Text := '';
end;
procedure TForm1.Panel2Click(Sender: TObject);
begin
Label2.Caption := '';
if (f = True) and (v.Color = clLime) and
((v.Caption <= Edit4.Text) or (Edit4.Text = '')) then
begin
t := t + 1;
StatusBar1.Panels.Items[1].Text := 'Кол-во шагов: ' + IntToStr(t);
Pos(v);
Edit1.Text := IntToStr(StrToInt(Edit1.Text) + 1);
Move(v, Panel5, Edit1);
Edit4.Text := v.Caption;
Hig(p, Panel3, Edit5, Edit2);
Hig(p, Panel4, Edit6, Edit3);
EndOfGame;
v.Color := clBlue;
Label2.Caption := 'Выберите диск для перемещения';
end
else
Label2.Caption := 'Неправильный ход';
end;
procedure TForm1.Panel3Click(Sender: TObject);
begin
Label2.Caption := '';
if (f = True) and (v.Color = clLime) and
((v.Caption <= Edit5.Text) or (Edit5.Text = '')) then
begin
t := t + 1;
StatusBar1.Panels.Items[1].Text := 'Кол-во шагов: ' + IntToStr(t);
Pos(v);
Edit2.Text := IntToStr(StrToInt(Edit2.Text) + 1);
Move(v, Panel7, Edit2);
Edit5.Text := v.Caption;
Hig(p, Panel2, Edit4, Edit1);
Hig(p, Panel4, Edit6, Edit3);
EndOfGame;
v.Color := clBlue;
Label2.Caption := 'Выберите диск для перемещения';
end
else
Label2.Caption := 'Ход не верный';
end;
procedure TForm1.Panel4Click(Sender: TObject);
begin
Label2.Caption := '';
if (f = True) and (v.Color = clLime) and
((v.Caption <= Edit6.Text) or (Edit6.Text = '')) then
begin
t := t + 1;
StatusBar1.Panels.Items[1].Text := 'Кол-во шагов: ' + IntToStr(t);
Pos(v);
Edit3.Text := IntToStr(StrToInt(Edit3.Text) + 1);
Move(v, Panel6, Edit3);
Edit6.Text := v.Caption;
Hig(p, Panel2, Edit4, Edit1);
Hig(p, Panel3, Edit5, Edit2);
EndOfGame;
v.Color := clBlue;
Label2.Caption := 'Выберите диск для перемещения';
end
else
Label2.Caption := 'Ход не верный';
end;
procedure TForm1.Pos(Panel: TPanel);
begin
if (Panel.Left = StrToInt(FloatToStr(90 - Panel.Width / 2))) then
Edit1.Text := IntToStr(StrToInt(Edit1.Text) - 1);
if (Panel.Left = StrToInt(FloatToStr(300 - Panel.Width / 2))) then
Edit2.Text := IntToStr(StrToInt(Edit2.Text) - 1);
if (Panel.Left = StrToInt(FloatToStr(510 - Panel.Width / 2))) then
Edit3.Text := IntToStr(StrToInt(Edit3.Text) - 1);
end;
procedure TForm1.Sel(Pan1: TObject; Pan: Pin; Ed1, Ed2, Ed3: TEdit);
begin
if ((Pan1 as TPanel).Caption = Ed1.Text) or
((Pan1 as TPanel).Caption = Ed2.Text) or
((Pan1 as TPanel).Caption = Ed3.Text) then
begin
for i := 1 to UpDown1.Position do
Pan[i].Color := clBlue; (Pan1 as TPanel)
.Color := clLime;
Label2.Caption := 'Переместите диск';
end;
end;
procedure TForm1.EndOfGame;
begin
if (Edit2.Text = IntToStr(UpDown1.Position)) or
(Edit3.Text = IntToStr(UpDown1.Position)) then
begin
Panel1.Enabled := False;
Label1.Visible := True;
Label2.Visible := False;
Timer1.Enabled := False;
end;
end;
procedure TForm1.Hig(Pan: Pin; Tow: TPanel; Ed1, Ed2: TEdit);
begin
if StrToInt(Ed2.Text) = 1 then
for i := 1 to UpDown1.Position do
if (Tow.Left = Pan[i].Left + Pan[i].Width / 2 - 5) then
Ed1.Text := Pan[i].Caption;
if StrToInt(Ed2.Text) > 1 then
for i := UpDown1.Position downto 2 do
for j := UpDown1.Position - 1 downto 1 do
if (Tow.Left = Pan[i].Left + Pan[i].Width / 2 - 5) and
(Tow.Left = Pan[j].Left + Pan[j].Width / 2 - 5) then
if (StrToInt(Pan[i].Caption) > StrToInt(Pan[j].Caption)) then
Ed1.Text := Pan[j].Caption;
if StrToInt(Ed2.Text) = 0 then
Ed1.Text := '';
end;
procedure TForm1.Move(Pan1, Pan2: TPanel; Ed: TEdit);
begin
Pan1.Left := StrToInt(FloatToStr(Pan2.Left + Pan2.Width / 2 - Pan1.Width / 2)
);
Pan1.Top := Pan2.Top - 20 * StrToInt(Ed.Text);
end;
procedure TForm1.N2Click(Sender: TObject);
begin
Game(Sender);
end;
procedure TForm1.Timer1Timer(Sender: TObject);
begin
s := IntToStr(StrToInt(s) + 1);
if (s = '60') then
begin
m := IntToStr(StrToInt(m) + 1);
s := '00';
end;
if Length(s) = 1 then
s := '0' + IntToStr(StrToInt(s));
if Length(m) = 1 then
m := '0' + IntToStr(StrToInt(m) + 1);
StatusBar1.Panels.Items[0].Text := 'Время игры: ' + m + ':' + s;
end;
procedure TForm1.PanelClick(Sender: TObject);
begin
if ((Sender as TPanel).Caption = Edit4.Text) or
((Sender as TPanel).Caption = Edit5.Text) or
((Sender as TPanel).Caption = Edit6.Text) then
begin
for i := 1 to UpDown1.Position do
p[i].Color := clBlue; (Sender as TPanel)
.Color := clLime;
v := (Sender as TPanel);
f := True;
Label2.Caption := 'Переместите диск';
end;
end;
procedure TForm1.Game(Sen: TObject);
begin
if MessageDlg('Вы уверены, что хотите закончить эту игру и начать новую?',
mtInformation, [mbOK, mbCancel], 0) = 1 then
begin
for i := 1 to n do
p[i].Destroy;
FormCreate(Sen);
Panel1.Enabled := True;
Timer1.Enabled := True;
Label2.Visible := True;
Label2.Caption := 'Выберите диск для перемещения';
n := UpDown1.Position;
SetLength(p, UpDown1.Position + 1);
for i := 1 to UpDown1.Position do
begin
Edit1.Text := IntToStr(i);
Edit4.Text := IntToStr(1);
p[i] := TPanel.Create(Self);
p[i].Height := 20;
p[i].Width := Panel5.Width - 16 * (UpDown1.Position - i + 1);
p[i].Left := (Panel2.Left + 5) - StrToInt(FloatToStr(p[i].Width / 2));
p[i].Top := Panel5.Top - p[i].Height * (UpDown1.Position - i + 1);
p[i].Color := clBlue;
p[i].Anchors := [akLeft, akBottom];
p[i].Font.Color := clYellow;
p[i].Font.Style := [fsBold];
p[i].Caption := IntToStr(i);
p[i].OnClick := PanelClick;
p[i].Parent := Panel1;
end;
end;
end;
procedure TForm1.N4Click(Sender: TObject);
begin
if MessageDlg('Закончить игру и выйти?', mtInformation, [mbOK, mbCancel], 0) = 1 then
Close;
end;
end.
