596 Chapter 8: Call Admission Control and QoS Signaling
Gatekeeper Zone Bandwidth
The gatekeeper function is an IOS-based mechanism specific to H.323 networks. Different levels of Cisco IOS Software provide various, specific capabilities within this feature. In Cisco IOS Releases 12.1(5)T and 12.2, the gatekeeper function has the capability to limit the number of simultaneous calls across a WAN link similar to the CallManager location-based CAC discussed in the preceding section.
Gatekeeper Zone Bandwidth Operation
By dividing the network into zones, a gatekeeper can control the allocation of calls in its local zone and the allocation of calls between its own zone and any other remote zone in the network. For the purpose of understanding how this feature operates, assume a voice call is equal to 64 kbps of bandwidth. Actual bandwidth used by calls in a gatekeeper network are addressed in the “Zone Bandwidth Calculation” section.
Single-Zone Topology

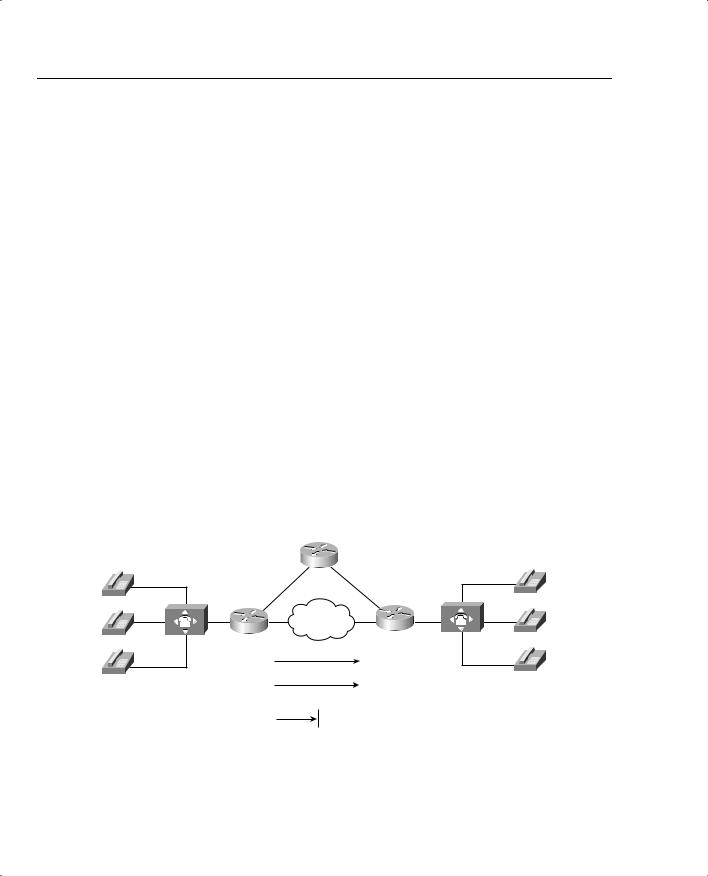

Figure 8-22 shows a single-zone gatekeeper network with two gateways that illustrates gatekeeper CAC in its simplest form. If the WAN bandwidth of the link between the two gateways can carry no more than two calls, the gatekeeper must be configured so that it denies the third call. Assuming every call is 64 kbps, the gatekeeper is configured with a zone bandwidth limitation of 128 kbps to achieve CAC in this simple topology.
Figure 8-22 Simple Single-Zone Topology
Gatekeeper
R1 |
IP Network |
R2 |
|
Call 1 Is Allowed
Call 2 Is Allowed
Call 3 Is Denied
Resource-Based CAC 597
Most networks, however, are not as simple as the one shown in Figure 8-22. Figure 8-23 shows a more complex topology; however, it is still configured as a single-zone network. In this topology, the legs in the WAN cloud each have separate bandwidth provisioning and therefore separate capabilities of how many voice calls can be carried across each leg. The numbers on the WAN legs in Figure 8-23 show the maximum number of calls that can be carried across each leg.

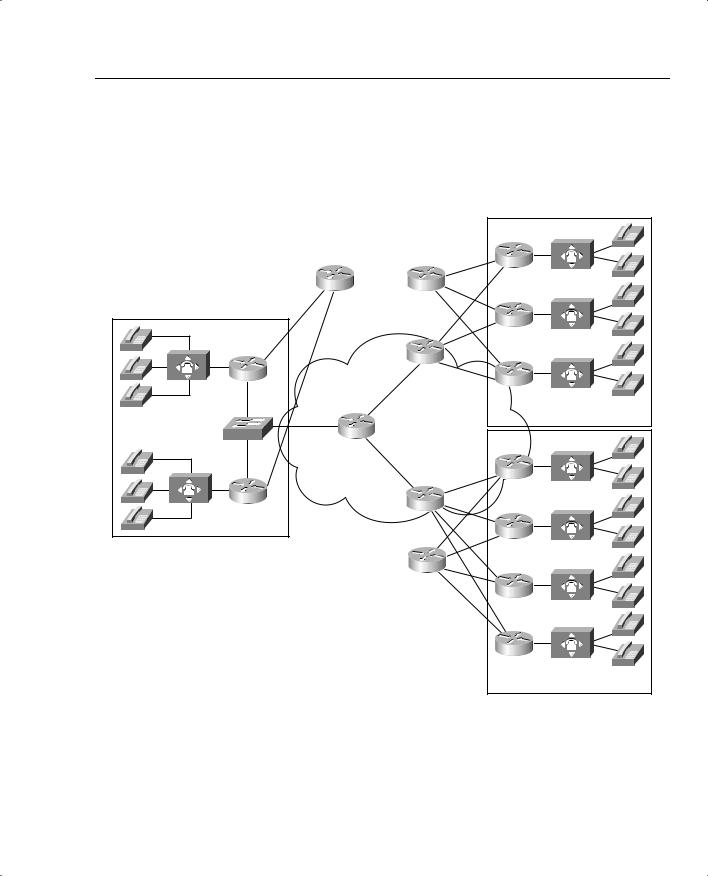

Figure 8-23 Complex Single-Zone Topology
Zone Bandwidth of 128 kbps Will Not Scale
Gatekeeper
20 |
Headquarters |
Remote Site 1 |
2 |
4 |
Remote Site 2 |
Assume that the gatekeeper zone bandwidth is still configured to allow a maximum of 128 kbps, limiting the number of simultaneous calls to two.
With a single zone configured, the gatekeeper protects the bandwidth of the WAN link from Site 1 to the WAN aggregation point by not allowing more than two calls across that link. When two calls are in progress, however, additional calls between the PBXs at Headquarters are blocked even though there is ample bandwidth in the campus backbone to handle the traffic.
Multizone Topology
To solve the single-zone problem of reducing the call volume of the network to the capabilities of the lowest-capacity WAN link, you can design multiple gatekeeper zones into the network. A good practice in designing multiple zones is to create one zone per site, as shown in Figure 8-24.
598 Chapter 8: Call Admission Control and QoS Signaling

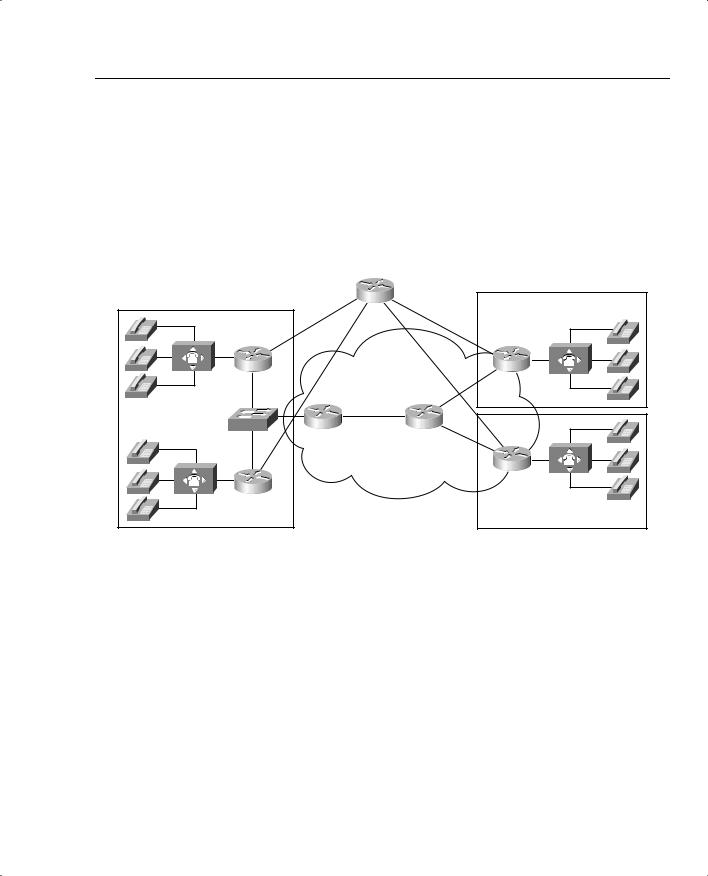

Figure 8-24 Simple Enterprise Multizone Topology |
|
|
|
Internal Zone HQ Traffic Is Unlimited |
HQ-Gatekeeper |
Site 1-Gatekeeper |
Zone 1 to Any Zone Limited to |
|
|
128 kbps |
|
Zone HQ to Zone 1 Limited to 128 kbps |
|
|
|
|
|
|
|
Zone HQ to Zone 2 Limited to 256 kbps |
|
|
Remote Site 1 |
|
|
|
Zone |
|
|
2 |
|
Headquarters |
20 |
|
|
|
|
|
|
Zone HQ |
|
|
|
|
|
4 |
|
|
|
|
Remote Site 2 |
|
|
|
Zone |
|
|
|
Zone 2 to Zone 1 Limited to 128 kbps |
|
|
|
Zone 2 to Zone HQ Limited to 256 kbps |
Site 2-Gatekeeper
The Site 1 gatekeeper limits the number of calls active in Site 1, regardless of where those calls originate or terminate, to two simultaneous calls by limiting the available bandwidth to 128 kbps. Because there is only one gateway at Site 1, there is no need to configure a limit for the intrazone call traffic. All interzone traffic is limited to two calls to protect the WAN link connecting Site 1.
At Site 2 there is also a single gateway, and therefore no need to limit the intrazone call traffic. There are separate interzone limits for the following scenarios:
•Calls between Site 2 and the Headquarters site are limited to a maximum of four calls on the WAN link connecting Site 2.
•Calls between Site 2 and Site 1 are limited to a maximum of two calls on the WAN link connecting Site 1.
The Headquarters site has a similar configuration to Site 2 except that calls are unlimited within Headquarters; not because there is a single gateway, but because there is ample bandwidth between the gateways at this site.
In the network topology in Figure 8-24, gatekeeper CAC provides sufficient granularity needed to protect voice conversations across the low-speed WAN links. Consider another network topology in which there are multiple gateways per zone, however, with each gateway at the
Resource-Based CAC 599
remote sites having a separate WAN connection to the aggregation point. Figure 8-25 shows such a network topology.

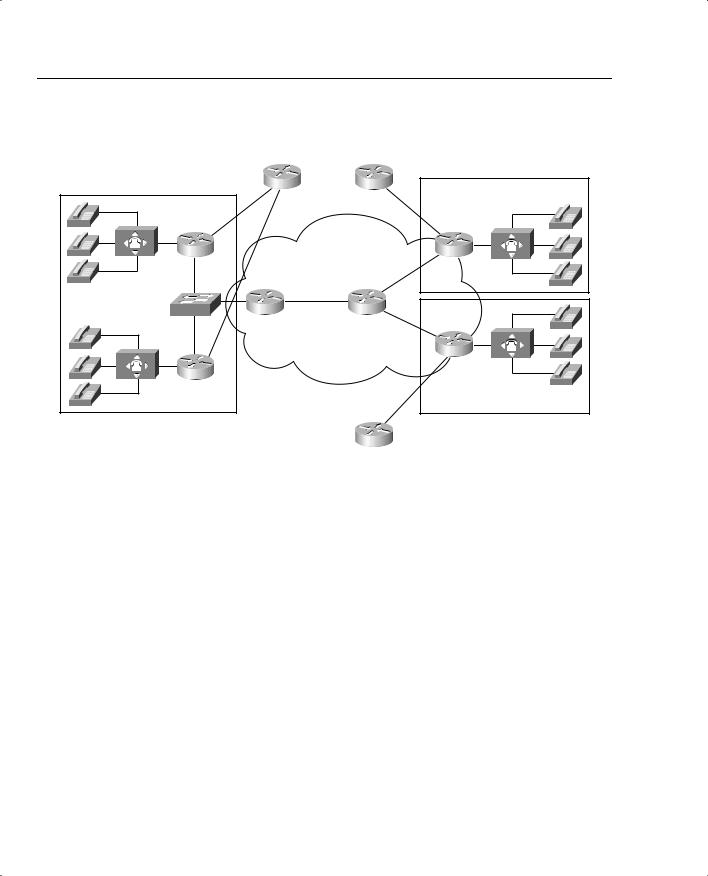

Figure 8-25 Complex Enterprise Multizone Topology
Zone 1 to Any Zone Limited to 128 kbps
HQ-Gatekeeper
Internal Zone HQ Traffic Is Unlimited
Zone HQ to Zone 1 Limited to 128 kbps
Zone HQ to Zone 2 Limited to 256 kbps
Headquarters |
20 |
|
|
Zone HQ |
|
Site 1-Gatekeeper
2
4
6
4
Remote Site 1
Zone 1
6
2
2
10
Site 2-Gatekeeper |
5 |
|
Remote Site 2
Zone 2
Zone 2 to Zone 1 Limited to 128 kbps
Zone 2 to Zone HQ Limited to 256 kbps
Of the three gateways in remote Site 1, the slowest WAN access link can carry a maximum of two simultaneous calls. Because the gatekeeper bandwidth limitation is configured per zone and not per gateway, there is no facility within gatekeeper CAC to limit the calls to specific gateways within the zone. To ensure protection of voice conversations, the zone bandwidth
600 Chapter 8: Call Admission Control and QoS Signaling
must be configured for the slowest link in the zone. For both remote Sites 1 and 2, the slowest link is 128 kbps bandwidth or two calls.
This configuration ensures proper voice quality at all times, but it is also wasteful of the gateways that could terminate more calls without oversubscribing their WAN bandwidth. In this network configuration, CAC is activated too soon and reroutes calls over to the PSTN when in fact they could have been carried by the WAN. In this type of topology, gatekeeper CAC is not sufficient to protect voice quality over the WAN link, and, at the same time, optimize the bandwidth use of all WAN links.
The last configuration to consider is an SP network where the gateways in the POPs are connected via Fast Ethernet to the WAN edge router, as shown in Figure 8-26.

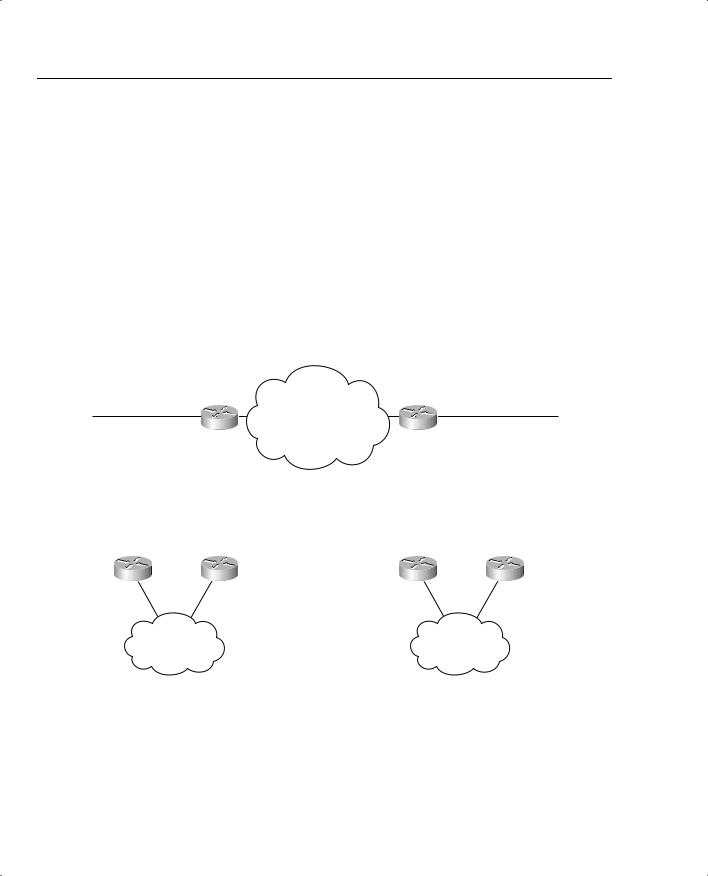

Figure 8-26 Service Provider Topology with Multiple Gateways per Zone
Service Provider
WAN Backbone
Other POPs |
OC-12 |
Other POPs |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
West POP |
|
|
|
|
|
East POP |
Gatekeeper |
|
|
|
|
|
Gatekeeper |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PSTN |
PSTN |
In this network, gatekeeper CAC is sufficient, even though there are multiple gateways per zone, because the connections to specific gateways within the zone are not the links that need protection. The bandwidth that needs protection is the WAN access link going into the backbone that aggregates the call traffic from all gateways. A gatekeeper bandwidth limitation for the zone indeed limits the number of calls over that link. It is assumed that the OC-12 backbone link is overengineered and requires no protection.
