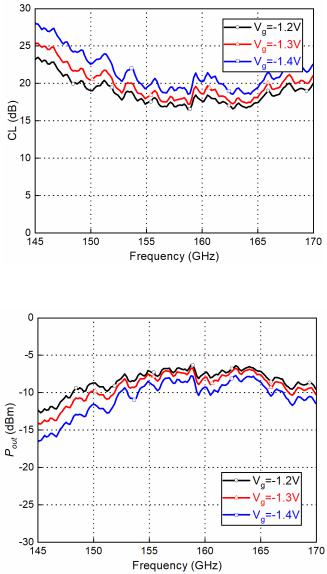

Figure 15: Conversion loss (CL) vs. frequency (IF @ 10dBm & LO @ 13dBm).

Figure 16: Output power vs. frequency (IF @ 10dBm & LO @ 13dBm).

Prime Archives in Sensors: 2nd Edition

Figure 17: Conversion loss (CL) and output power vs. input power at 160 GHz. (LO @ 13dBm).

The same mixer module could also be used as a D-band receiver with down-converter mode. When the RF input is settled with power of -20 dBm, and IF output is fixed at 2 GHz, RF is changed from 145 GHz to 170 GHz, LO is changed as USB configuration, and the result is shown in the Figure18. For the measurement of the S-parameters by using a network analyzer, there is a good agreement with the chip datasheet at most of the operating frequencies for both up-converter mode and downconverter mode. The mixer module has better CL flatness in the working frequency band compared with chip’s data, which is mainly caused by better wideband matching within the chip packaging.

Prime Archives in Sensors: 2nd Edition

Figure 18: Conversion loss (CL) vs. frequency. (RF @ -20dBm & LO @ 13dBm).

Three same modules have been fabricated and measured. The conversion loss with down-conversion modes is shown at Figure 19. There is almost no frequency shifting between different modules and the performance discrepancies are acceptable.

Figure 19: Conversion loss (CL) vs. frequency. Comparison with three modules.

Prime Archives in Sensors: 2nd Edition

Conclusions

A GWG based on Glide-Symmetric hole EBG configuration has shown the advantages of non-expensive fabrication, galvanic contact elimination and leakage signal suppression, which makes the technology an excellent candidate to be used in the millimeter and terahertz wave band. In this paper, a D-band IQ mixer MMIC module using this GWG configuration has been achieved by the wire-bond transition from MMIC chip to such GWG without any transfer substrate, making the interconnection low lossy and high efficient. Good agreement of the mixer module with the chip datasheet is achieved, which indicates that the GWG based on the Glide-Symmetric hole configuration and the substrate-less transition used have good frequency performances at D band. The good consistence between multi modules show that the method developed here is highly repeatable and suitable for large scale fabrication.

We have demonstrated that the implementation of mmW/THz active devices is feasible using the proposed integration and packaging solution. Actually, the same method could be used on constructing a whole compact waveguide transceiver system with low cost and high performance which makes the commercialization of mmW/THz application more feasible.

References

1.UR Pfeiffer, R Jain, J Grzyb, S Malz, P Hillger, et al. Current Status of Terahertz Integrated Circuits - From Components to Systems, 2018 IEEE BiCMOS and Compound Semiconductor Integrated Circuits and Technology Symposium (BCICTS). San Diego, CA. 2018; 1-7.

2.N Weimann. InP HBT technology for THz applications, 2020 IEEE International Symposium on RadioFrequency Integration Technology (RFIT). Hiroshima, Japan. 2020; 190-192.

3.Michael Schröter, Tommy Rosenbaum, Pascal Chevalier, Bernd Heinemann, Sorin P Voinigescu, et al. SiGe HBT Technology: Future Trends and TCAD-Based Roadmap. In Proceedings of the IEEE. 2017; 105: 1068-1086.

Prime Archives in Sensors: 2nd Edition

4.FCC Online Table of Frequency Allocations, Federal Communications Commission. Washington DC, USA. 2018. Available online at: https://transition.fcc.gov/oet/spectrum/table/fcctable.pdf

5.Y Li, J Hansryd. Fixed Wireless Communication Links Beyond 100 GHZ, 2018 Asia-Pacific Microwave Conference (APMC). Kyoto. 2018; 31-33.

6.James Campion, Ahmed Hassona, Zhongxia Simon He, Bernhard Beuerle, Adrian Gomez, et al. Toward Industrial Exploitation of THz Frequencies: Integration of SiGe MMICs in Silicon-Micromachined Waveguide Systems. In IEEE Transactions on Terahertz Science and Technology . 2019; 9: 624-636.

7.SM Lewis, EA Nanni, RJ Temkin. Direct Machining of Low-Loss THz Waveguide Components With an RF Choke. In IEEE Microwave and Wireless Components Letters. 2014; 24: 842-844.

8.B Beuerle, J Campion, U Shah, J Oberhammer. A Very Low Loss 220–325 GHz Silicon Micromachined Waveguide Technology, in IEEE Transactions on Terahertz Science and Technology. 2018; 8: 248-250.

9.P Kildal. Gap waveguides and PMC packaging: Octave bandwidth mmand sub mm-wave applications of soft & hard surfaces, EBGs and AMCs, 2013 Asia-Pacific Microwave Conference Proceedings (APMC). Seoul. 2013; 34-36.

10.A Vosoogh, PS Kildal, V Vassilev. Wideband and high-gain corporate-fed gap waveguide slot array antenna with ETSI class II radiation pattern in V-band. In IEEE Transactions on Antennas and Propagation. 2016; 65: 1823-1831.

11.M Rezaee, AU Zaman. Groove Gap Waveguide Filter Based on Horizontally Polarized Resonators for V-Band Applications, in IEEE Transactions on Microwave Theory and Techniques. 2020; 68: 2601-2609.

12.E Alfonso, AU Zaman, E Pucci, P Kildal. Gap waveguide components for millimetre-wave systems: Couplers, filters, antennas, MMIC packaging. 2012 International Symposium on Antennas and Propagation (ISAP). Nagoys. 2012; 243 - 246.

Prime Archives in Sensors: 2nd Edition

13.Y Shi, W Feng, B Cao. W-Band Gap Waveguide Antenna Array: Passive/Active Component Gap Waveguide Transition Interface for System Integration. IEEE Antennas and Propagation Magazine. 2021; 63: 40–49.

14.Y Shi, J Zhang, M Zhou, W Feng, B Cao, et al. Miniaturized W-band Gap Waveguide Bandpass Filter Using the MEMS Technique for Both Waveguide and Surface Mounted Packaging. IEEE Transactions on Circuits and Systems II: Express Briefs. 2019; 66: 938–942.

15.Abbas Vosoogh, Milad Sharifi Sorkherizi, Vessen Vassilev, Ashraf Uz Zaman, Zhongxia Si, et al. Compact Integrated Full-Duplex Gap Waveguide-Based Radio Front End For Multi-Gbit/s Point-to-Point Backhaul Links at E-Band. In IEEE Transactions on Microwave Theory and Techniques. 2019; 67: 3783-3797.

16.M Ferrando-Rocher, JI Herranz-Herruzo, A ValeroNogueira, B Bernardo-Clemente. Performance Assessment of Gap-Waveguide Array Antennas: CNC Milling Versus Three-Dimensional Printing. In IEEE Antennas and Wireless Propagation Letters. 2018; 17: 2056-2060.

17.Á Palomares-Caballero, A Alex-Amor, J ValenzuelaValdés, P Padilla. Millimeter-Wave 3-D-Printed Antenna Array Based on Gap-Waveguide Technology and Split E - Plane Waveguide. In IEEE Transactions on Antennas and Propagation. 2021; 69: 164-172.

18.S Rahiminejad, H Raza, AU Zaman, S Haasl, P Enoksson, et al. Micromachined gap waveguides for 100 GHz applications. 2013 7th European Conference on Antennas and Propagation (EuCAP). Gothenburg. 2013; 1935-1938.

19.M Ebrahimpouri, O Quevedo-Teruel, E Rajo-Iglesias. Design Guidelines for Gap Waveguide Technology Based on Glide-Symmetric Holey Structures. In IEEE Microwave and Wireless Components Letters. 2017; 27: 542-544.

20.Q Chen, F Mesa, X Yin, O Quevedo-Teruel. Accurate Characterization and Design Guidelines of Glide-Symmetric Holey EBG. In IEEE Transactions on Microwave Theory and Techniques. 2020; 68: 4984-4994.

21.Vosoogh, H Zirath, ZS He. Novel Air-Filled Waveguide Transmission Line Based on Multilayer Thin Metal Plates.

Prime Archives in Sensors: 2nd Edition

In IEEE Transactions on Terahertz Science and Technology. 2019; 9: 282-290.

22.A Vosoogh, AA Brazález, Y Li, ZS He. A Compact Mass - producible E-band Bandpass Filter Based on Multi-layer Waveguide Technology. 2020 14th European Conference on Antennas and Propagation (EuCAP). 2020; 1-5.

23.E Rajo-Iglesias, M Ebrahimpouri, O Quevedo-Teruel. Wideband Phase Shifter in Groove Gap Waveguide Technology Implemented With Glide-Symmetric Holey EBG. In IEEE Microwave and Wireless Components Letters. 2018; 28: 476-478.

24.A Monje-Real, NJG Fonseca, O Zetterstrom, E Pucci, O Quevedo-Teruel. Holey Glide-Symmetric Filters f or 5G at Millimeter-Wave Frequencies. In IEEE Microwave and Wireless Components Letters. 2020; 30: 31-34.

25.Q Chen, O Zetterstrom, E Pucci, A Palomares-Caballero, P Padilla et al. Glide-Symmetric Holey Leaky-Wave Antenna With Low Dispersion for 60 GHz Point-to-Point Communications. In IEEE Transactions on Antennas and Propagation. 2020; 68: 1925-1936.

26.LA Samoska. An Overview of Solid-State Integrated Circuit Amplifiers in the Submillimeter-Wave and THz Regime. In IEEE Transactions on Terahertz Science and Technology . 2011; 1: 9-24.

27.V Hurm, R Weber, A Tessmann, H Massler, A Leuther, et al. A 243 GHz LNA Module Based on mHEMT MMICs With Integrated Waveguide Transitions. In IEEE Microwave and Wireless Components Letters. 2013; 23: 486-488.

28.S Jameson, E Socher. A Wide-Band CMOS to Waveguide Transition at mm-Wave Frequencies With Wire -Bonds. In IEEE Transactions on Microwave Theory and Techniques. 2015; 63: 2741-2750.

29.D Hou, Y Xiong, W Goh, S Hu, W Hong, et al. 130 -GHz On-Chip Meander Slot Antennas With Stacked Dielectric Resonators in Standard CMOS Technology. In IEEE Transactions on Antennas and Propagation. 2012; 60: 41024109.

30.ZJ Hou, Y Yang, X Zhu, S Liao, SK Man, et al. A 320 GHz on-chip slot antenna array using CBCPW feeding network in

Prime Archives in Sensors: 2nd Edition

0.13-μm SiGe technology. 2017 IEEE MTT-S International Microwave Symposium (IMS). 2017; 843-846.

31.S Jameson, E Socher. A Wide-Band CMOS to Waveguide Transition at mm-Wave Frequencies With Wire -Bonds. In IEEE Transactions on Microwave Theory and Techniques. 2015; 63: 2741-2750.

32.Dong Y, Zhurbenko V, Hanberg PJ, Tom K. Johansen. A D- Band Rectangular Waveguide-to-Coplanar Waveguide Transition Using Wire Bonding Probe. In Journal of infrared, millimeter and terahertz waves. 2019; 40: 63-79.

33.B Ahmadi, A Banai. Substrateless Amplifier Module Realized by Ridge Gap Waveguide Technology for Millimeter-Wave Applications. In IEEE Transactions on Microwave Theory and Techniques. 2016; 64: 3623-3630.

34.A Hassona, V Vassilev, AU Zaman, H Zirath. Packaging Technique of Highly Integrated Circuits Based on EBG Structure for +100 GHz Applications. 2020 14th European Conference on Antennas and Propagation (EuCAP). 2020; 1-4.

35.A Hassona. Nongalvanic Generic Packaging Solution Demonstrated in a Fully Integrated D-Band Receiver. In IEEE Transactions on Terahertz Science and Technology . 2020; 10: 321-330.

36.A Hassona. Nongalvanic Generic Packaging Solution Demonstrated in a Fully Integrated D-Band Receiver. In IEEE Transactions on Terahertz Science and Technology . 2020; 10; 321-330.

37.Y Li. D-band SiGe transceiver modules based on silicon - micromachined integration. 2019 IEEE Asia-Pacific Microwave Conference (APMC). 2019; 883-885.

38.Z Gao, M Tang, P Gao, H Yue, Y Tang. Design and Measurement of D-Band Bonding-Wire Interconnection on Quartz Glass Substrate. 2020 International Conference on Microwave and Millimeter Wave Technology (ICMMT). 2020; 1-3.

39.A Hassona, V Vassilev, ZS He, C Mariotti, F Dielacher, et al. Silicon Taper Based D -Band Chip to Waveguide Interconnect for Millimeter-Wave Systems. In IEEE Microwave and Wireless Components Letters. 2017; 27: 1092-1094.
